When designing a stone crushing plant, choosing the right configuration not only affects productivity but also directly impacts operational costs and product quality. Whether you’re planning a small-scale aggregate production line or a large-scale mining operation, a well-designed crushing plant is essential to your success.
1. Overview of Stone Crushing Plant
A stone crushing plant is primarily used to crush large stones into different sizes of aggregates, widely applied in construction, road building, bridge projects, and water conservancy. The complete system typically includes core equipment such as vibrating feeders, jaw crushers, impact or cone crushers, vibrating screens, and conveyor systems.
Depending on project requirements—material type, feed size, capacity, and finished product sizes—the plant’s processing capacity can range from 50 tons per hour up to over 1200 tons per hour, or even 8,000–12,000 tons per day for large-scale operations.
2. Recommended Configuration for 50 TPH Crushing Line
For small to medium-scale construction or startup quarries, a 50 tons per hour (TPH) stone crushing plant offers a cost-effective and practical solution. A typical configuration includes:
- ZSW Series Vibrating Feeder – Ensures uniform material feeding and reduces clogging or idle running.
- PE Series Jaw Crusher – As the primary crusher, it handles a wide range of medium to high-hardness materials.
- PF Series Impact Crusher (or CS Series Cone Crusher) – Ideal for secondary or fine crushing, enhancing shape and gradation.
- YK Series Circular Vibrating Screen – For precise sizing of finished aggregates.
- Belt Conveyor System – Connects each stage for efficient and stable material flow.
- Control Panel System – Coordinates overall plant operation and safety.
This configuration offers low investment cost, ease of operation, and reliable performance, suitable for crushing granite, limestone, basalt, river stones, and more.

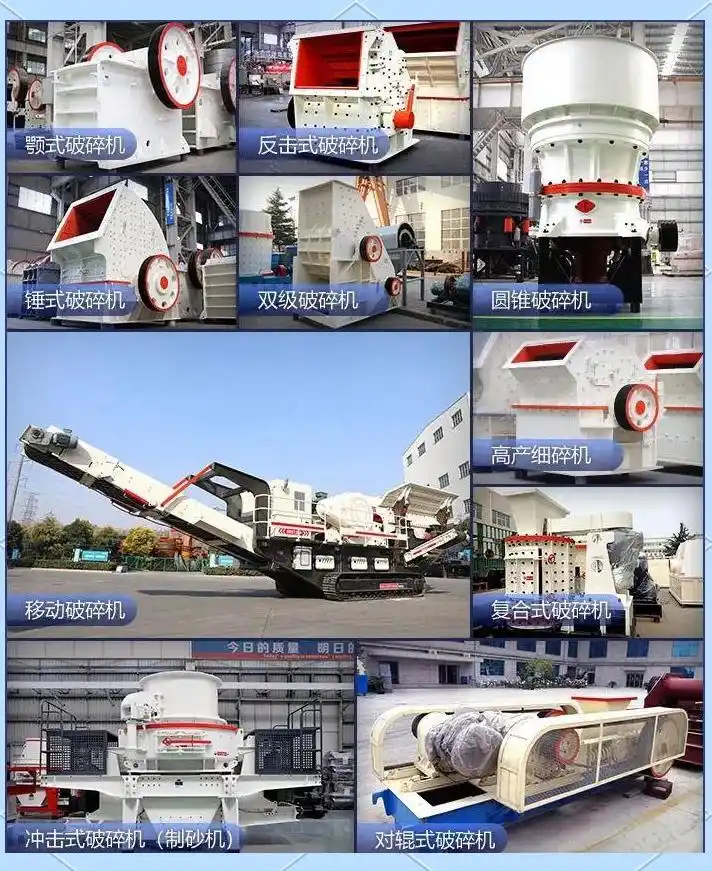

3. Core Crushing Equipment Introduction

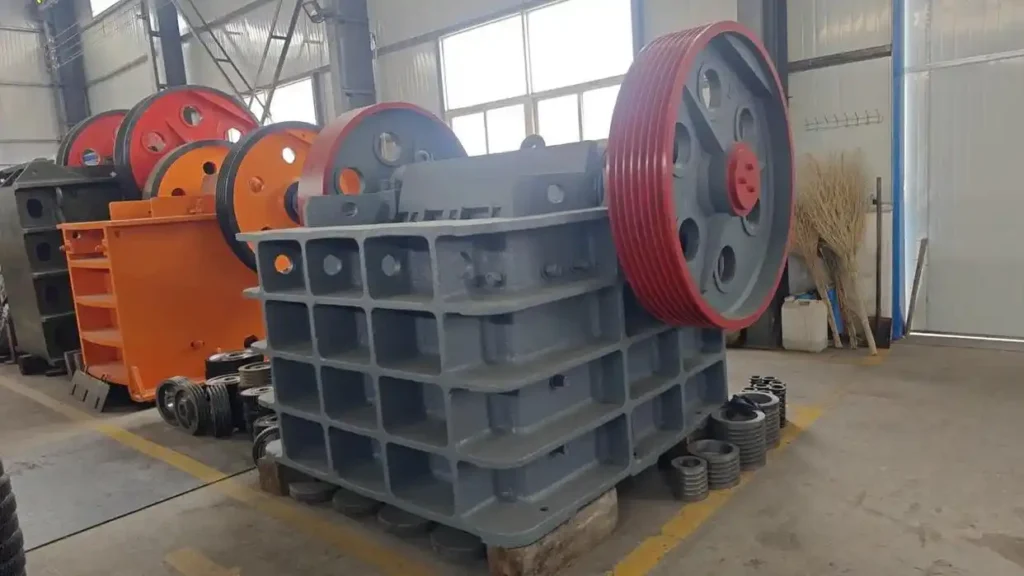

1. Jaw Crusher
A primary crushing machine widely used for handling various brittle and hard materials like rock, ore, coal, bricks, gypsum, and glass. Known for its simple structure, affordable pricing, and reliable performance, jaw crushers are essential in most crushing lines.

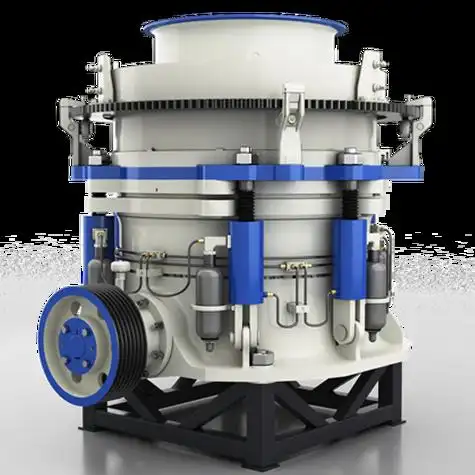

2. Cone Crusher
Designed for crushing medium to hard materials, cone crushers are commonly used in secondary or tertiary crushing stages. Featuring hydraulic adjustment and optimized cavity design, they deliver high crushing ratios and consistent performance, ideal for high-volume production.

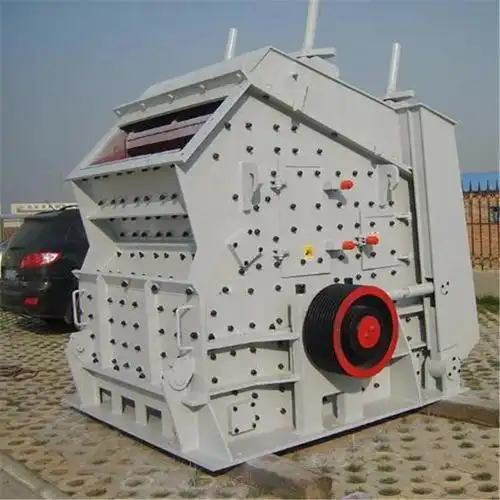

3. Impact Crusher
Well-suited for medium crushing tasks, impact crushers offer excellent shaping results. The final product is typically cubic in shape with minimal fine dust content, making it ideal for producing high-quality aggregates for construction.

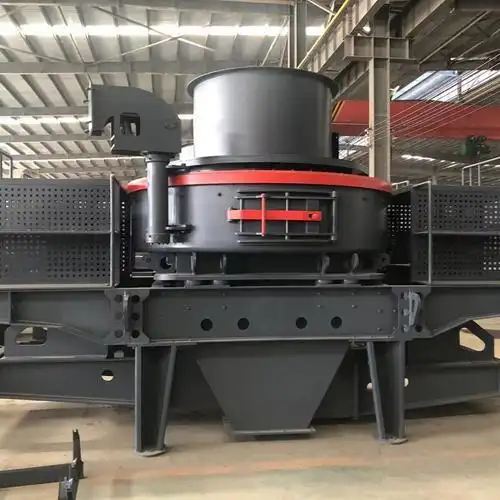

4. VSI Impact Crusher (Sand Making Machine)
Adopting the “rock-on-rock” principle and advanced technology from Barmac (USA), this machine is optimized for sand production and fine crushing. It’s available in both stationary and mobile models to meet diverse application needs.

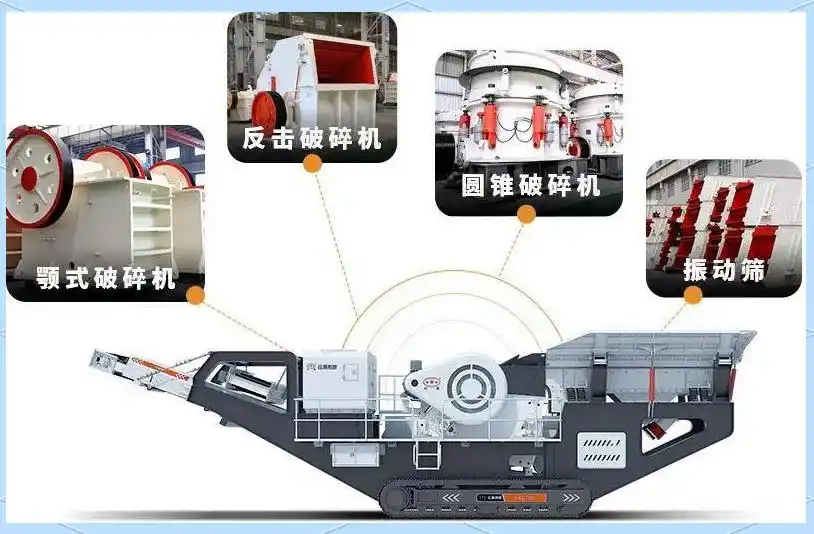

4. Mobile Crushing Solutions
Mobile crushers offer flexibility and mobility, ideal for dynamic work sites. There are two primary types:
- Tire-type Mobile Crushers – Affordable and suitable for projects with frequent site changes. Requires a towing vehicle to move.
- Crawler-type Mobile Crushers – Self-powered, strong off-road capability, faster and more convenient. Ideal for construction waste recycling, road building, or remote locations.
Both types can be equipped with various crushing and screening units to meet your specific requirements.
5. How to Choose the Right Crushing Plant Configuration?
Each stone crushing plant must be customized based on the following factors:
- Material properties (hardness, moisture, abrasiveness)
- Input size and feed gradation
- Desired output sizes (0-5mm, 5-10mm, 10-20mm, etc.)
- Hourly production capacity
- On-site conditions and power availability
- Budget and project timeline
We provide tailor-made crushing solutions, including equipment selection, site layout, flow design, on-site installation, and after-sales support.
