Design Scheme
Construction Aggregates Crushing Process
Combined Crushing Process (Applicable to Railway Ballast, Basalt, River Pebble, Granite, Feldspar, and Limestone)
1. Raw Material Preprocessing
Use a vibrating feeder to ensure uniform feeding, maintaining stable operation of the equipment.
2. Primary Crushing
Use a jaw crusher for primary crushing to process large raw materials, achieving initial particle size reduction for subsequent processing.
Applicable to all types of stones for primary crushing.
3. Secondary Crushing
Select cone crusher or impact crusher for secondary crushing based on stone hardness and crushing requirements.
Hard stones such as basalt, granite, and feldspar mostly use cone crushers.
Softer stones or those requiring shaping, like railway ballast, river pebble, and limestone, mainly use impact crushers.
4. Screening and Classification
Use vibrating screens to classify the crushed materials, separating qualified products that meet the particle size requirements.
Unqualified materials are returned to the crusher for reprocessing to ensure consistent product quality.
5. Finished Product Stacking
Stack qualified finished products according to particle size specifications for easy transportation and further use.
Process Key Points
Ensure uniform feeding to avoid equipment blockage or overload.
Select appropriate crushing equipment to guarantee crushing efficiency and product quality.
Strictly control particle size during screening to ensure the shape and size of stone materials meet standards.
For hard stones such as basalt and granite, pay attention to equipment wear resistance.
250-300 TPH Hard Rock Crushing Process Flow

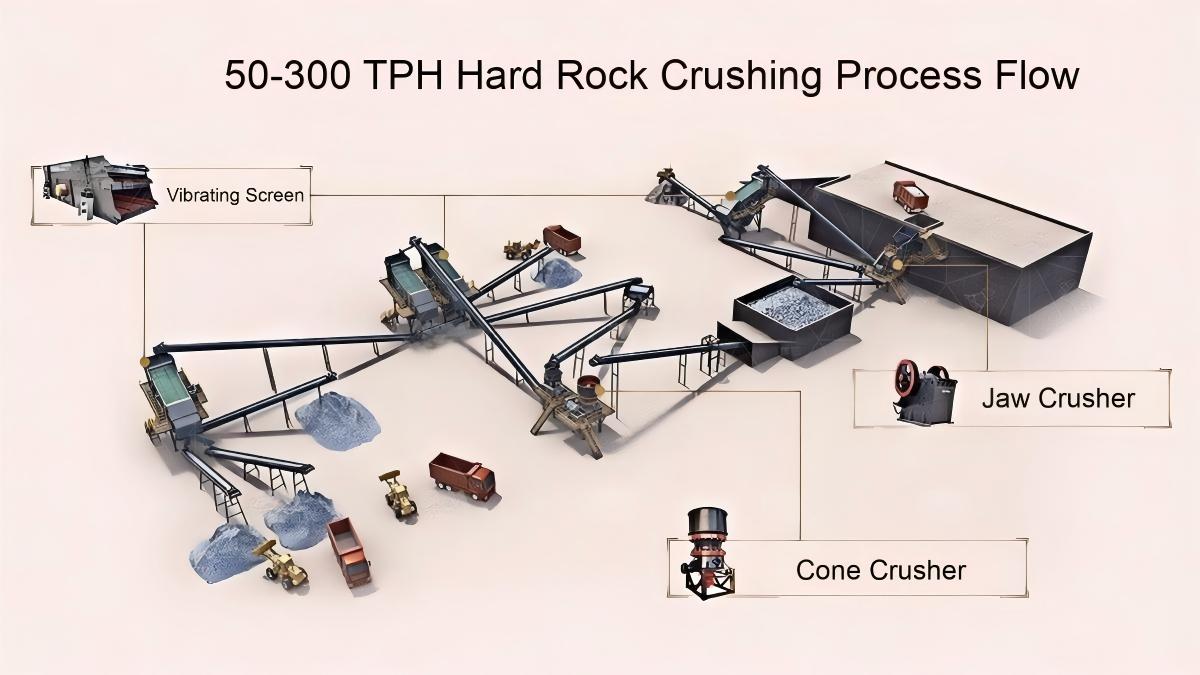

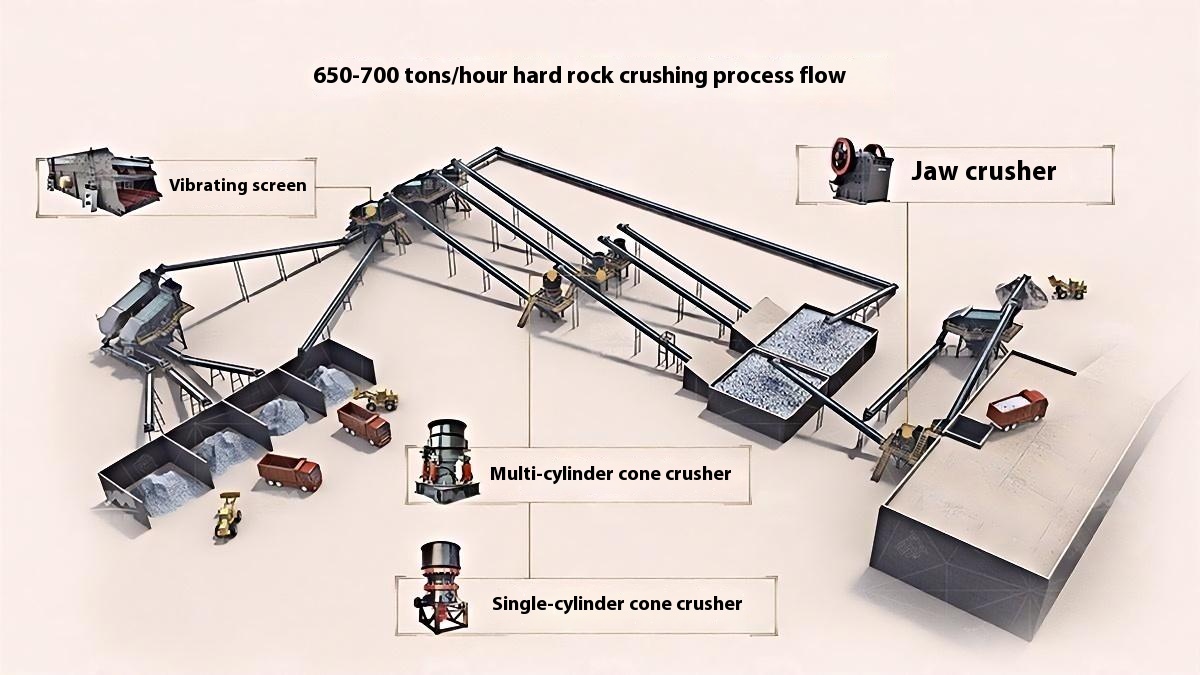

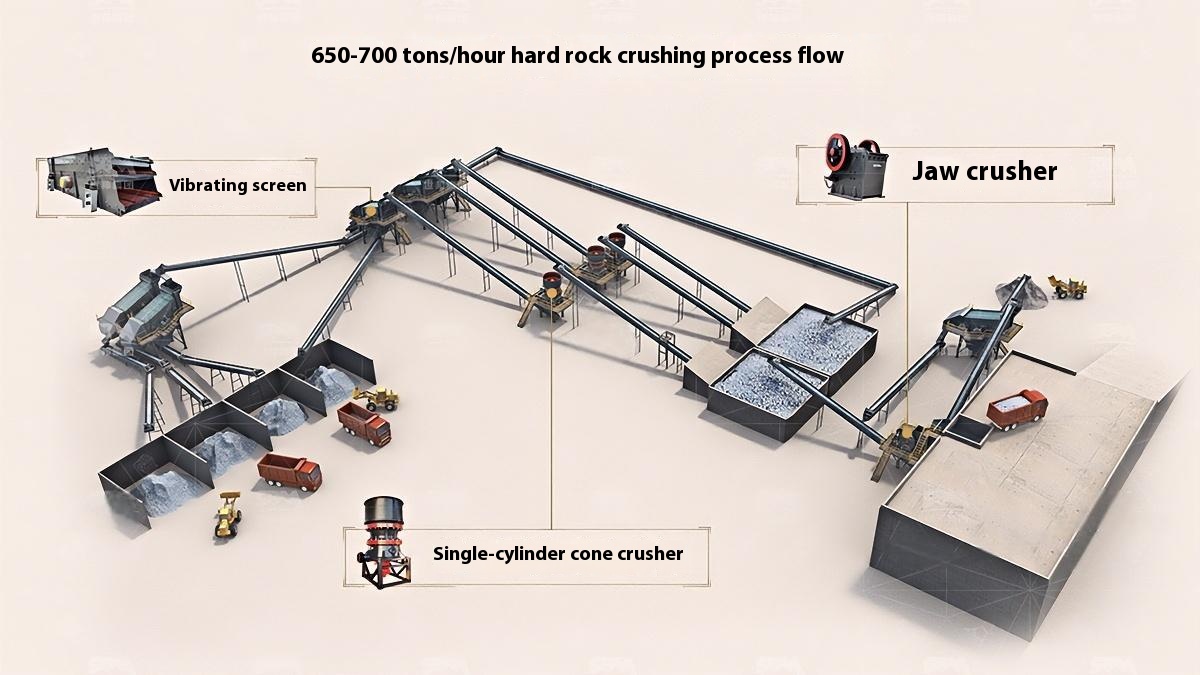

650-700 TPH Hard Rock Crushing Process Flow

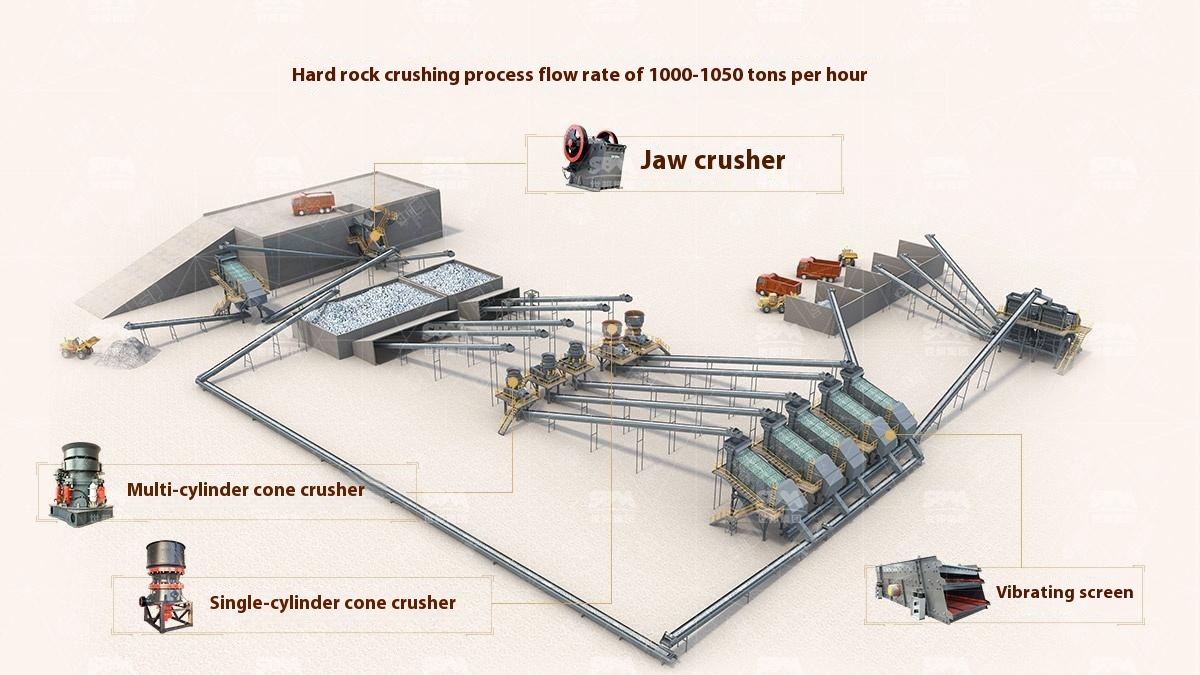

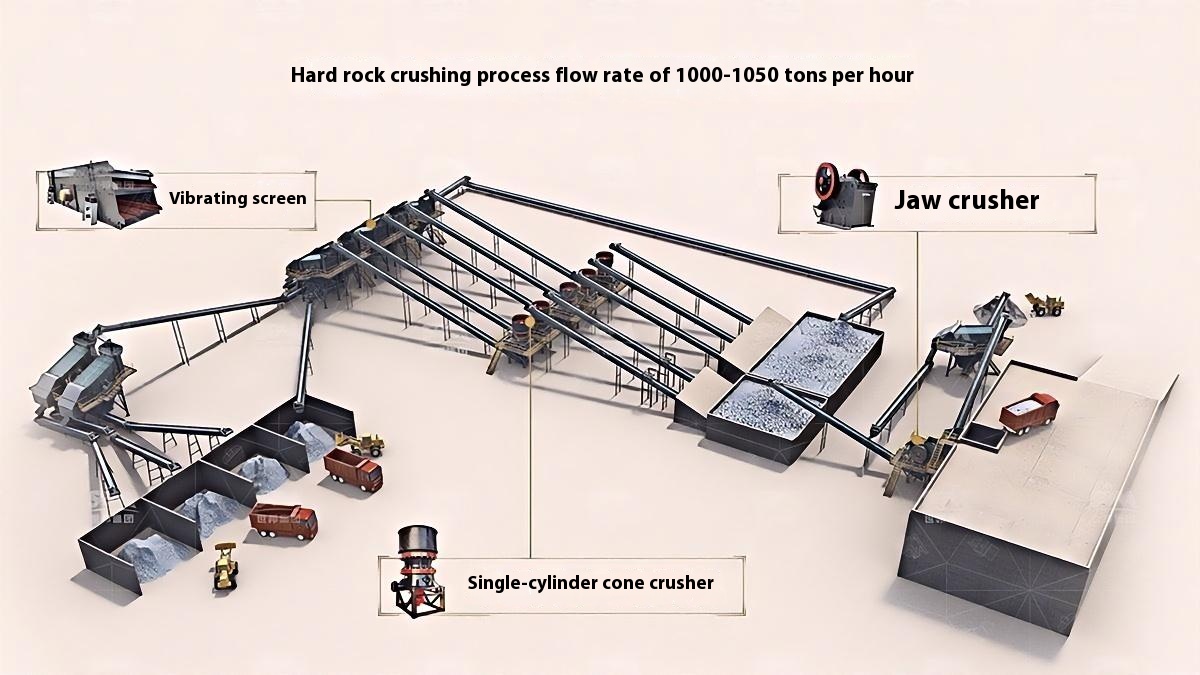

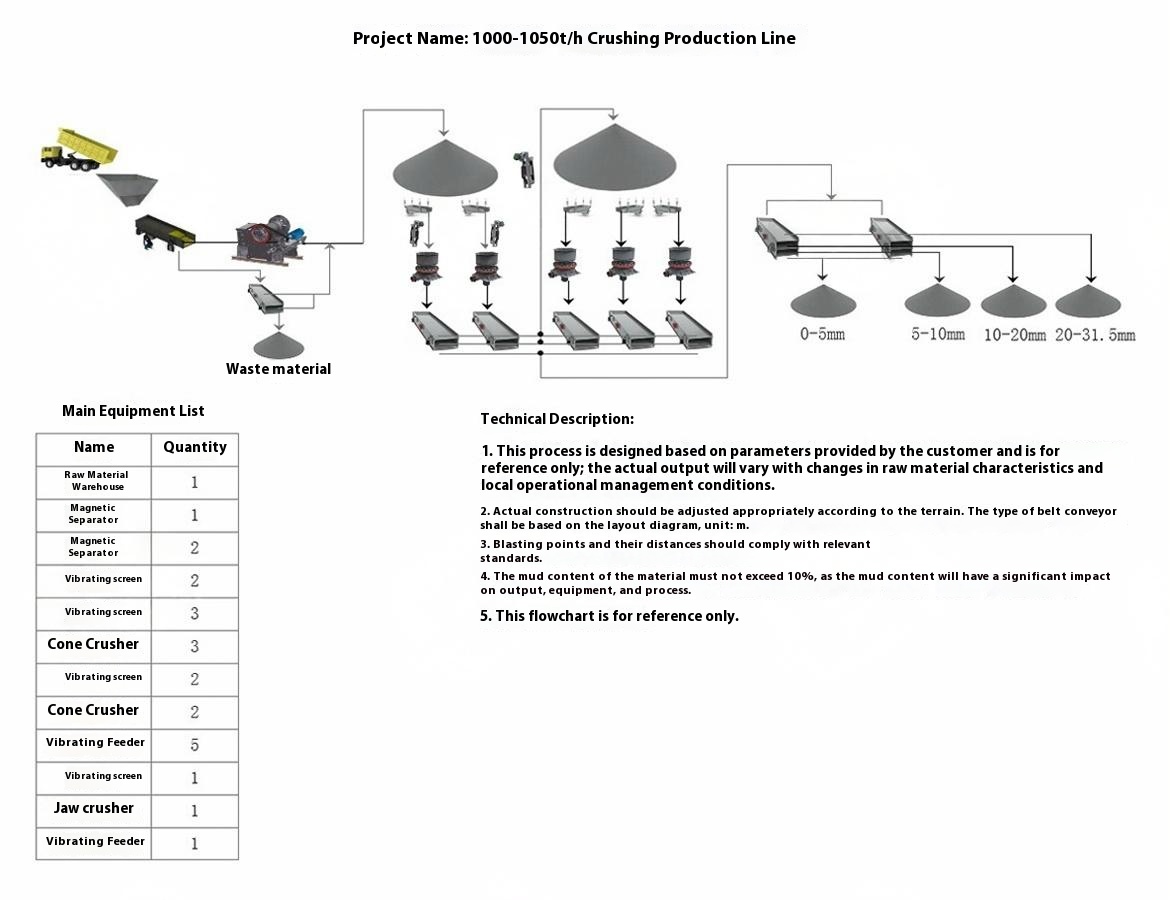

1000-1050 TPH Hard Rock Crushing Process Flow
Basalt
High hardness, dense structure, high compressive strength
Chemically stable, resistant to weathering
Typically dark gray or black in color
Basalt Crushing Process:
Raw material feeding → Primary crushing (jaw crusher) → Secondary crushing (cone crusher) → Vibrating screening and classification → Finished product stockpiling

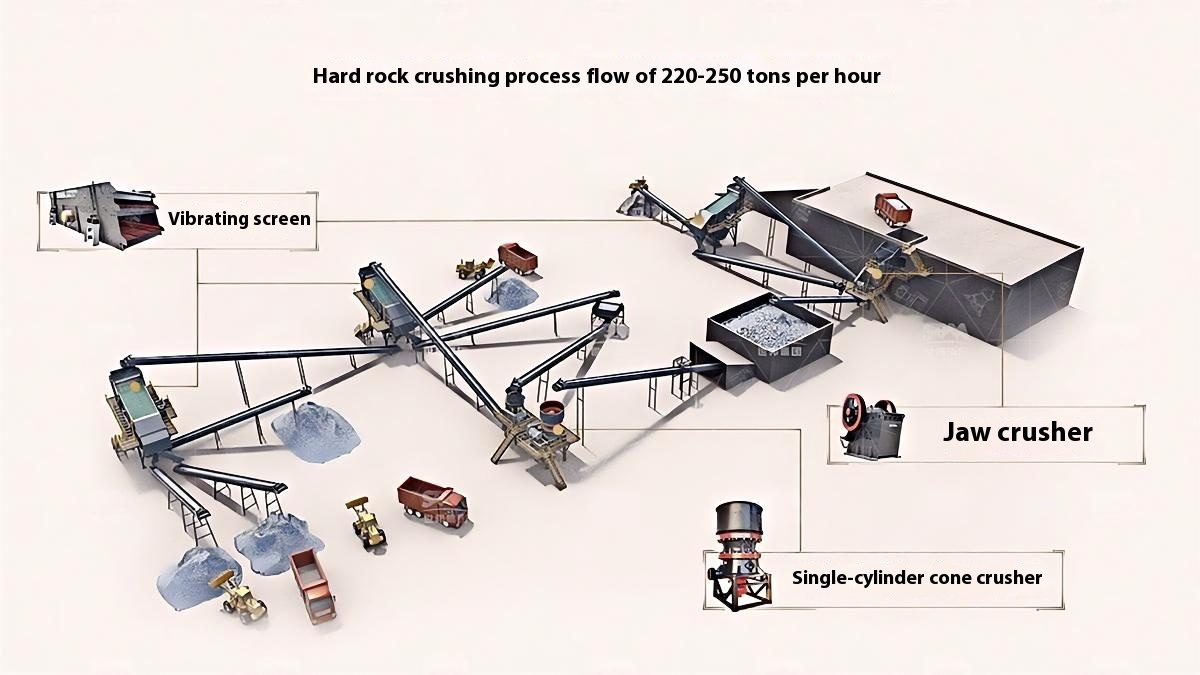

220-250 TPH Hard Rock Crushing Process Flow

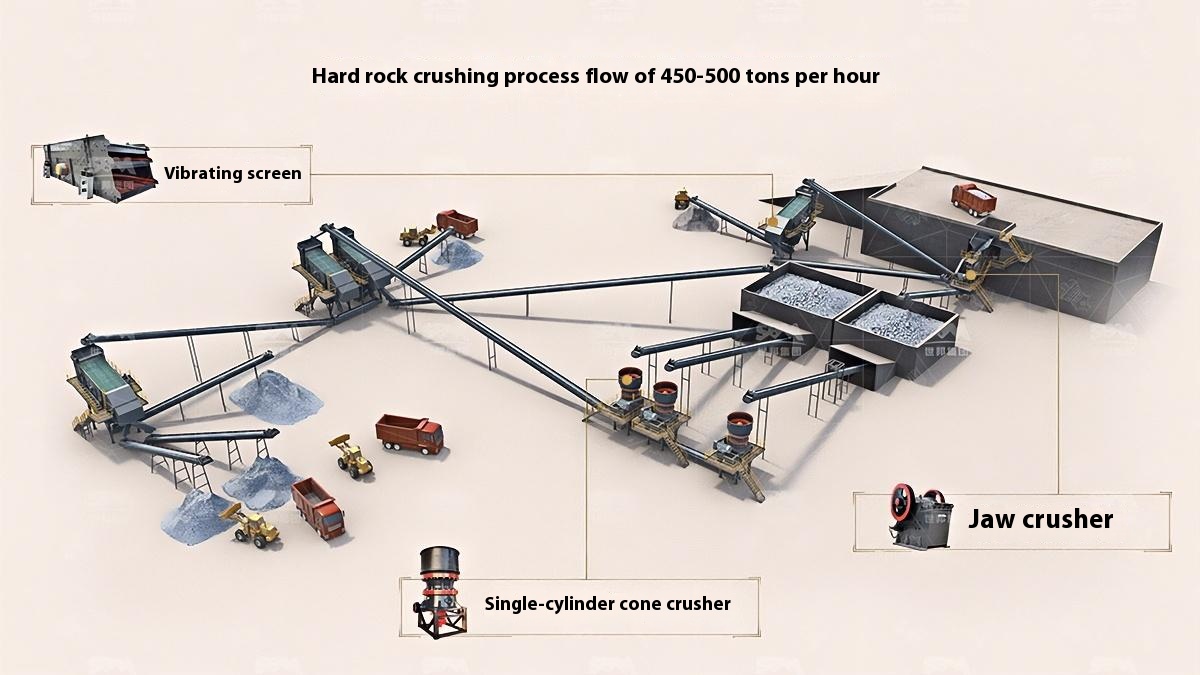

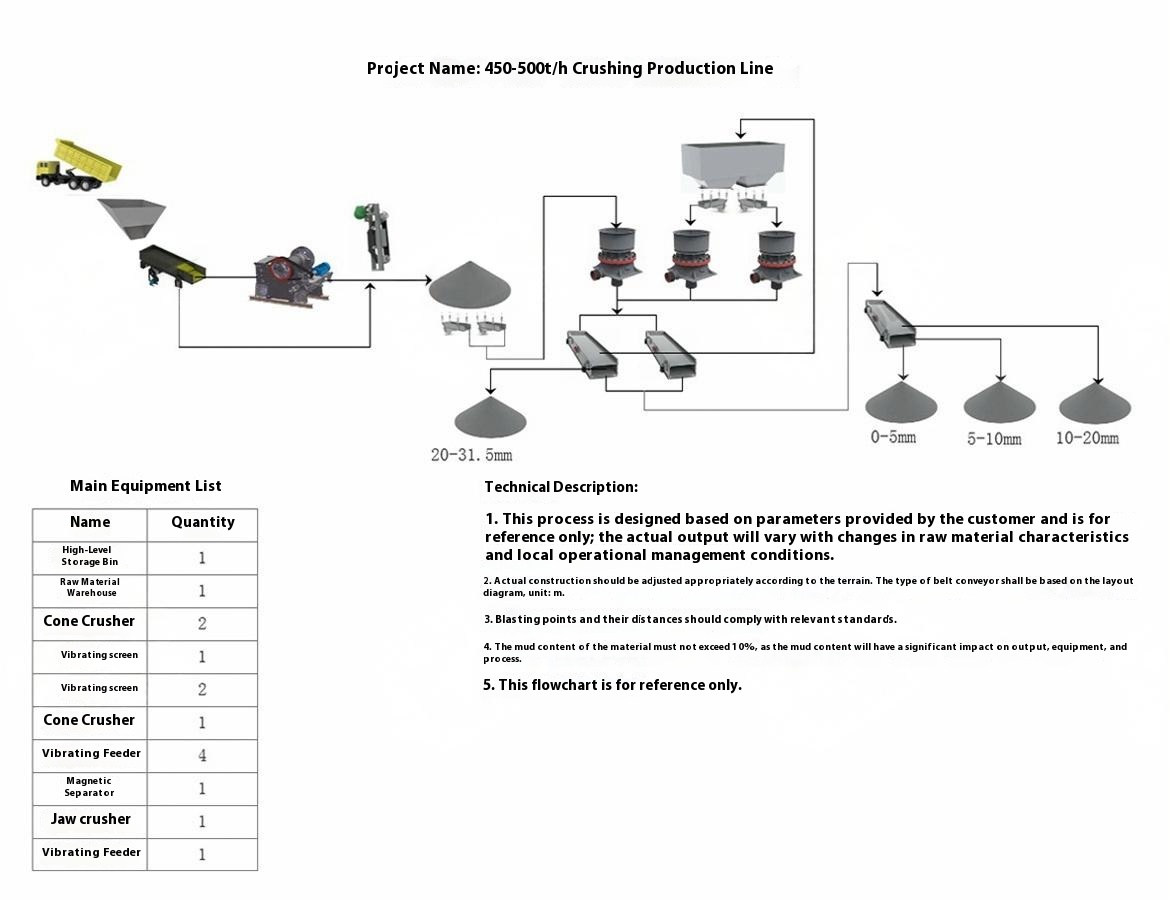

450-500 TPH Hard Rock Crushing Process Flow
1000-1050 TPH Hard Rock Crushing Process Flow
Railway Ballast
High hardness and excellent wear resistance
Angular particle shape, ideal for stabilizing railway tracks
High compressive strength and good freeze-thaw resistance
Railway Ballast Crushing Process:
Feeding → Primary crushing (jaw crusher) → Secondary crushing (impact crusher or cone crusher) → Vibrating screening → Selection of products with required particle size → Oversized materials returned for re-crushing

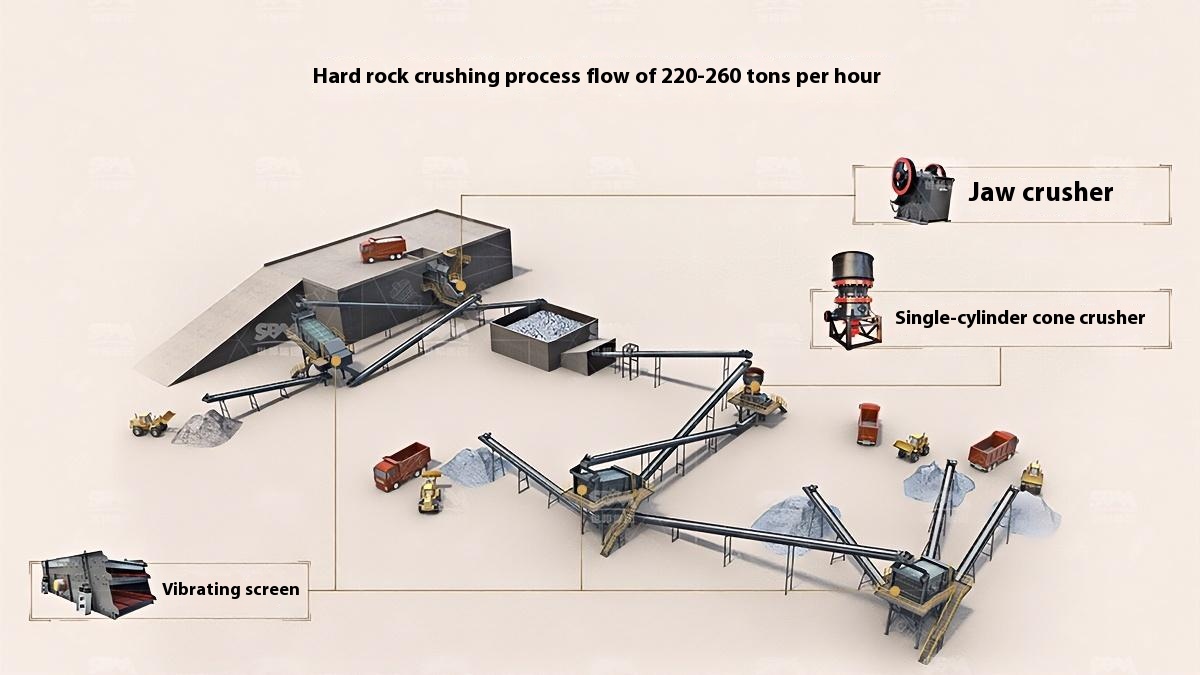

220-260 TPH Hard Rock Crushing Process Flow

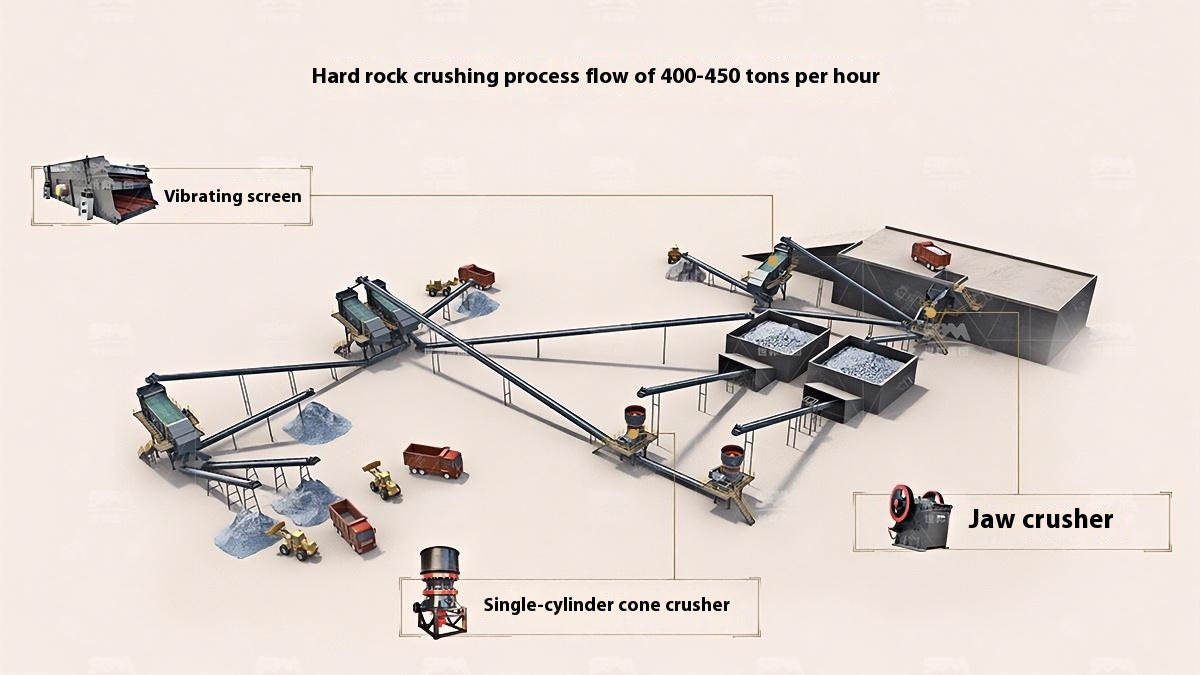

400-450 TPH Hard Rock Crushing Process Flow

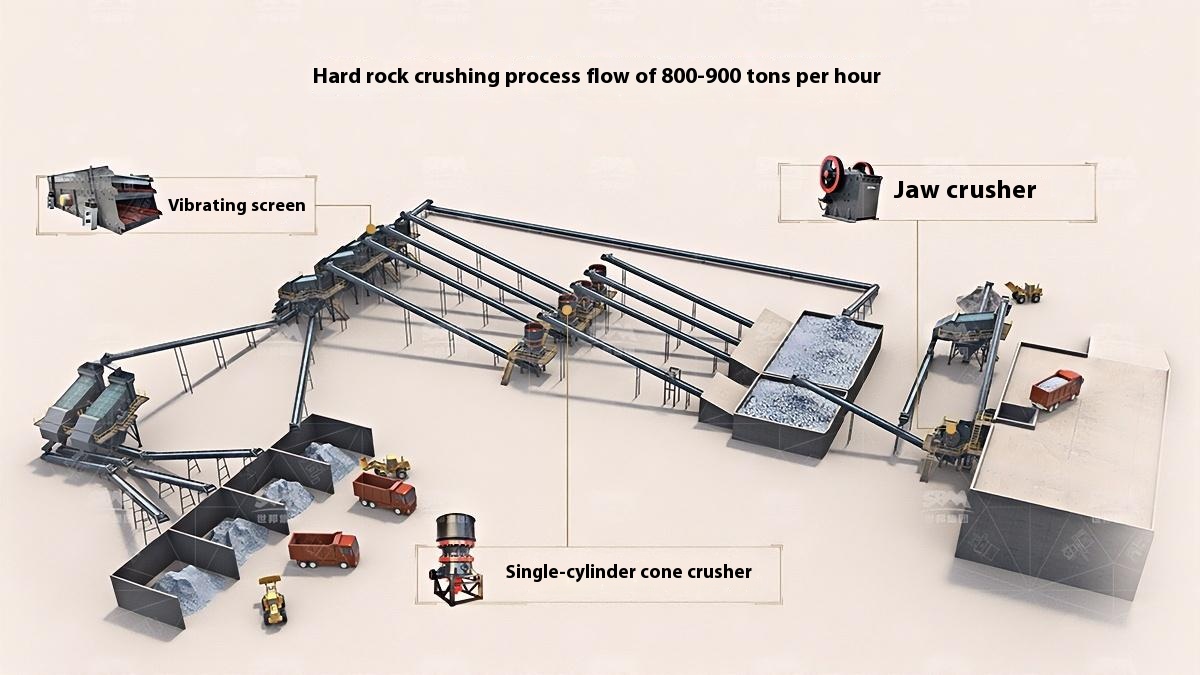

800-900 TPH Hard Rock Crushing Process Flow
Feldspar
High hardness, brittle nature
Dense structure with stable chemical properties
Available in various colors, commonly white, pink, or gray
Feldspar Crushing Process:
Feeding → Primary crushing (jaw crusher) → Secondary crushing (cone crusher or impact crusher) → Vibrating screening and classification → Finished product stockpiling
380-450 TPH Hard Rock Crushing Process Flow
650-700 TPH Hard Rock Crushing Process Flow

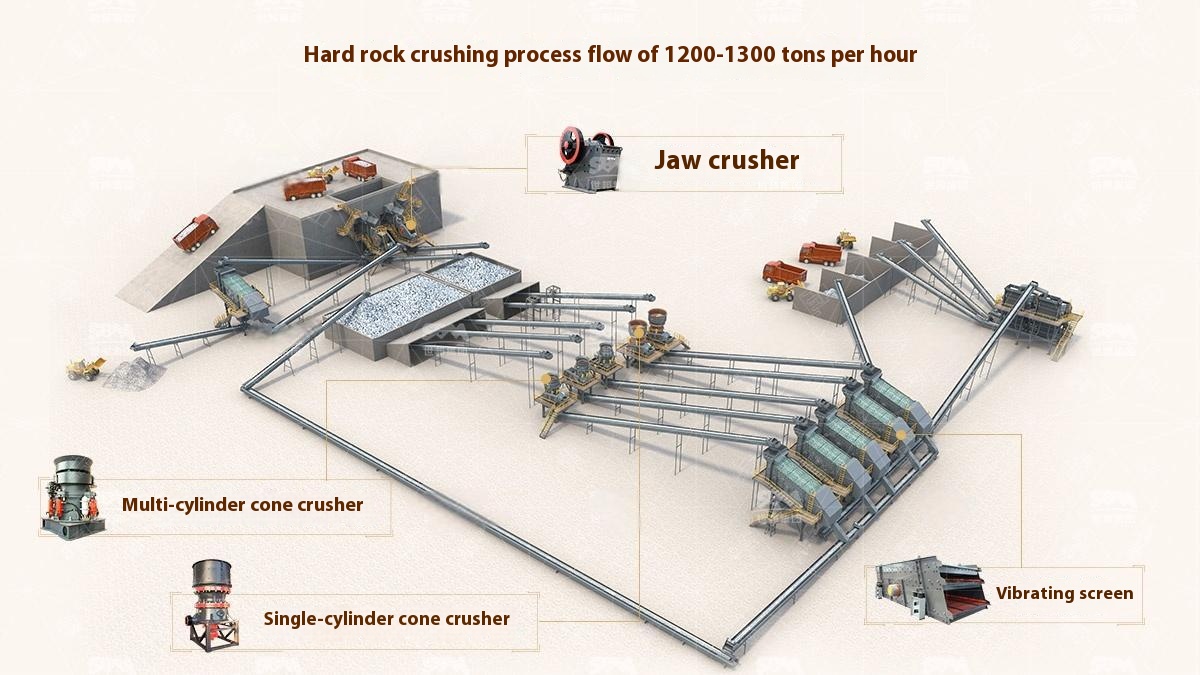

1200-1300 TPH Hard Rock Crushing Process Flow
Granite
Dense structure, high hardness, excellent wear resistance
Various colors, commonly gray, pink, or red
High compressive strength and strong weather resistance
Granite Crushing Process:
Feeding → Primary crushing (jaw crusher) → Secondary crushing (cone crusher or impact crusher) → Vibrating screening → Product classification

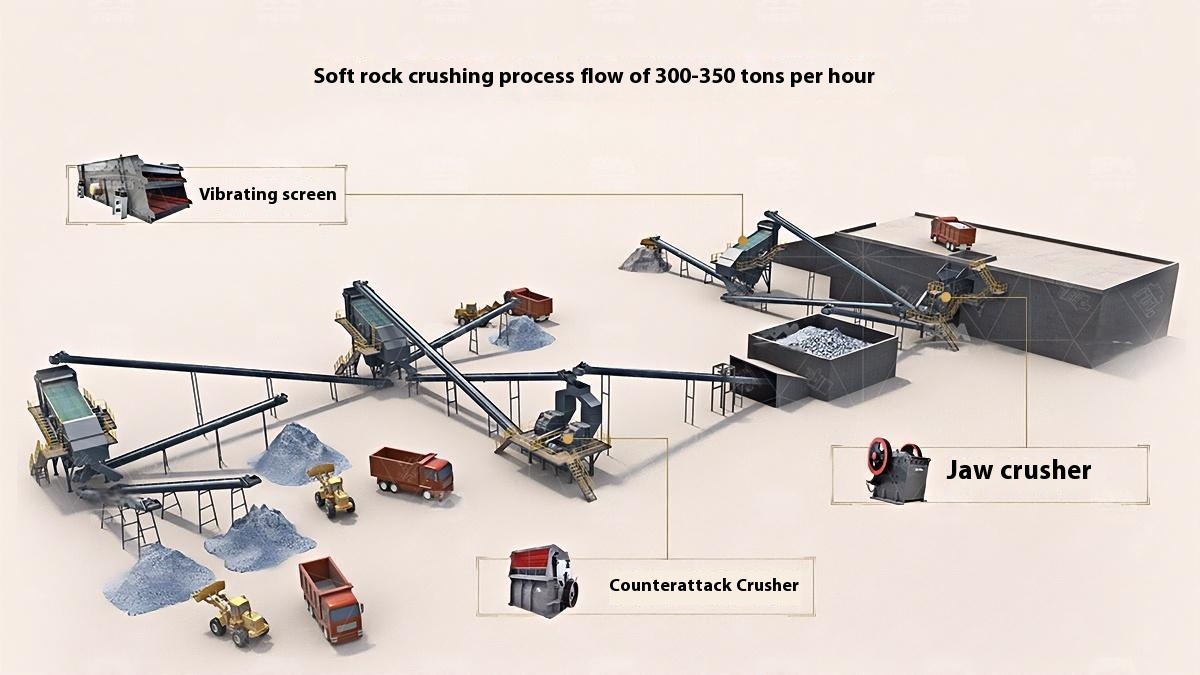

300-350 TPH Soft Rock Crushing Process Flow

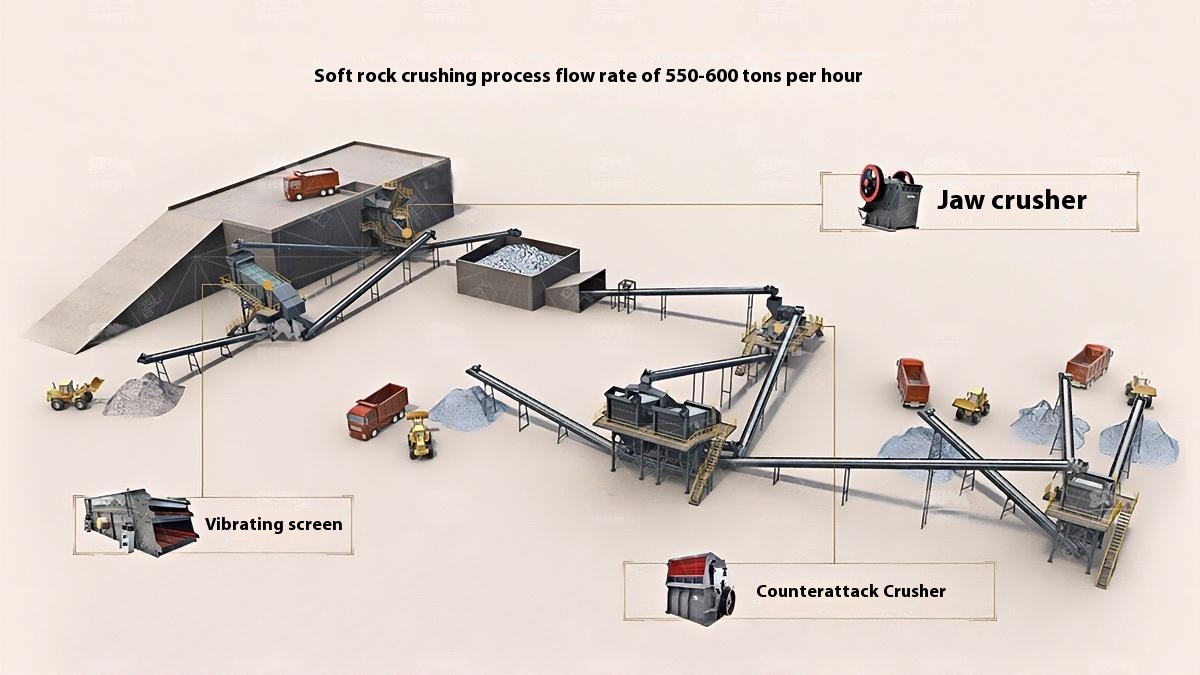

550-600 TPH Soft Rock Crushing Process Flow

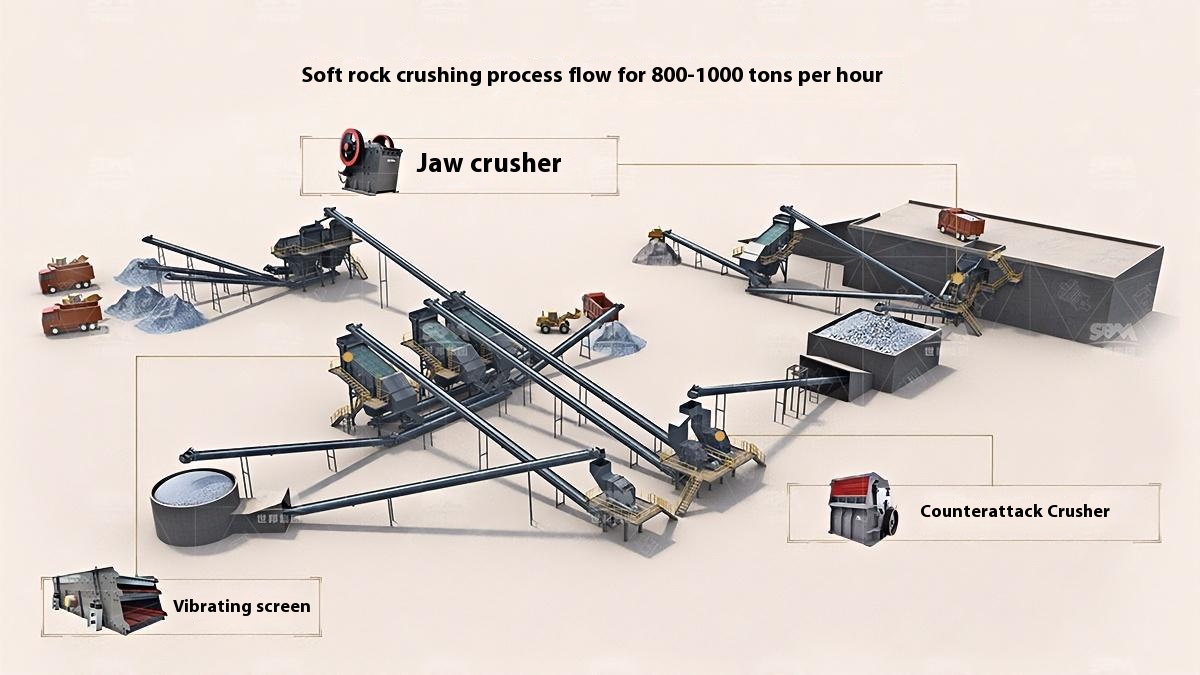

800-1000 TPH Soft Rock Crushing Process Flow
Granite
Dense structure, high hardness, excellent wear resistance
Various colors, commonly gray, pink, or red
High compressive strength and strong weather resistance
Granite Crushing Process:
Feeding → Primary crushing (jaw crusher) → Secondary crushing (cone crusher or impact crusher) → Vibrating screening → Product classification

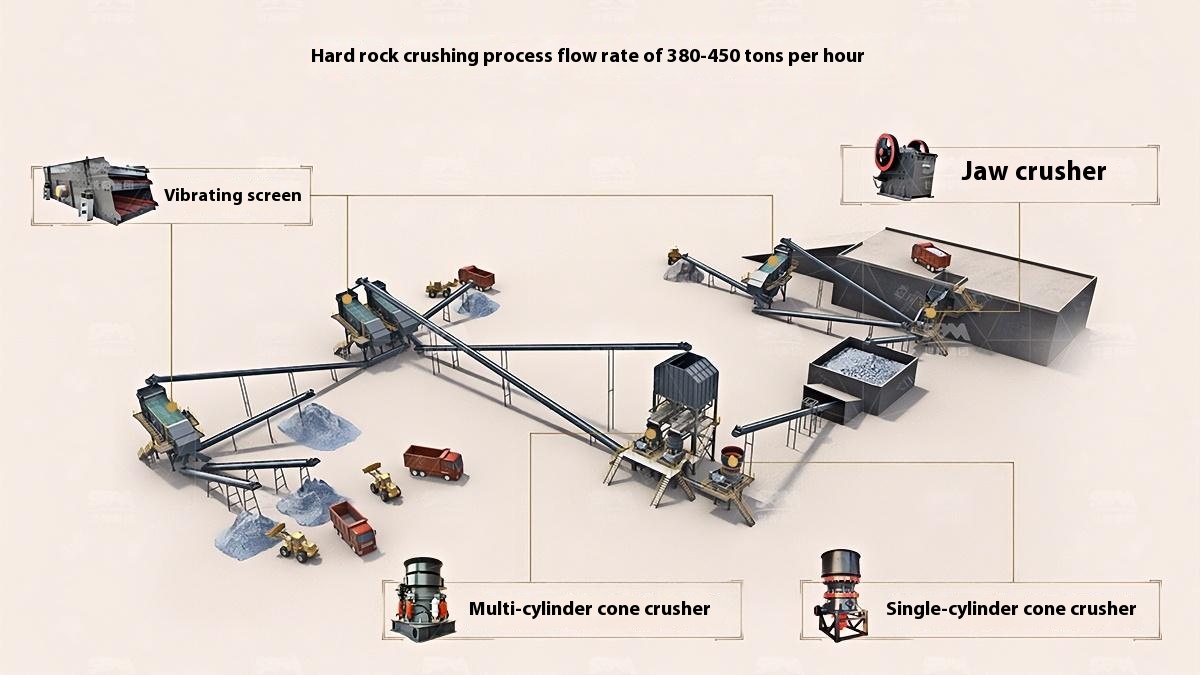

380-450 TPH Hard Rock Crushing Process Flow
450-500 TPH Hard Rock Crushing Process Flow
1200-1300 TPH Hard Rock Crushing Process Flow
Limestone
Relatively soft texture with low hardness
Contains calcium carbonate, easily eroded by acidic substances
Typically light gray, white, or yellow with uniform texture
Limestone Crushing Process:
Feeding → Primary crushing (jaw crusher) → Secondary crushing (impact crusher) → Vibrating screening → Product classification → Oversized materials returned for re-crushing
Non-Ferrous Metal Ore Crushing Process
Combined Crushing Process for Various Metal Ores

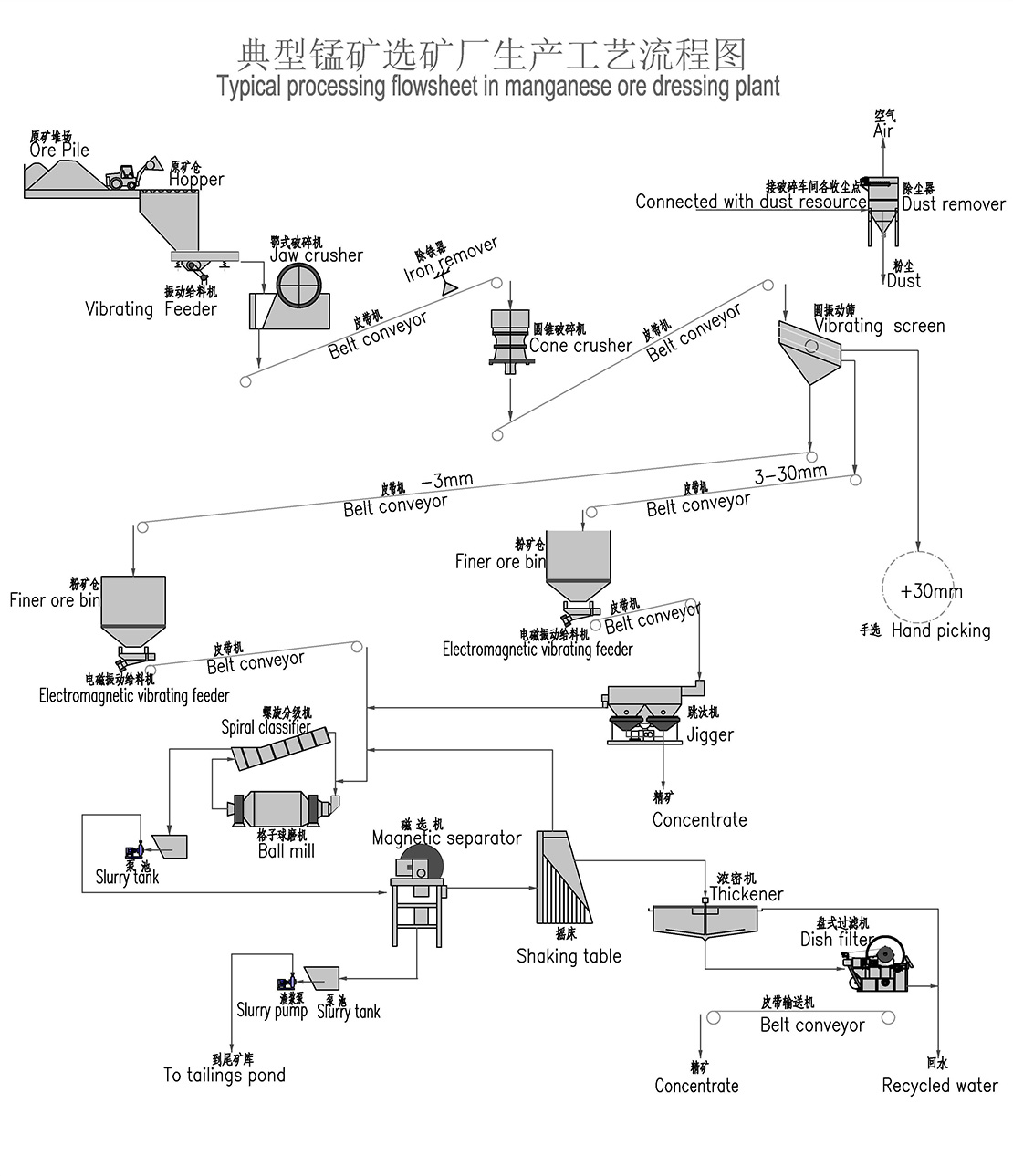

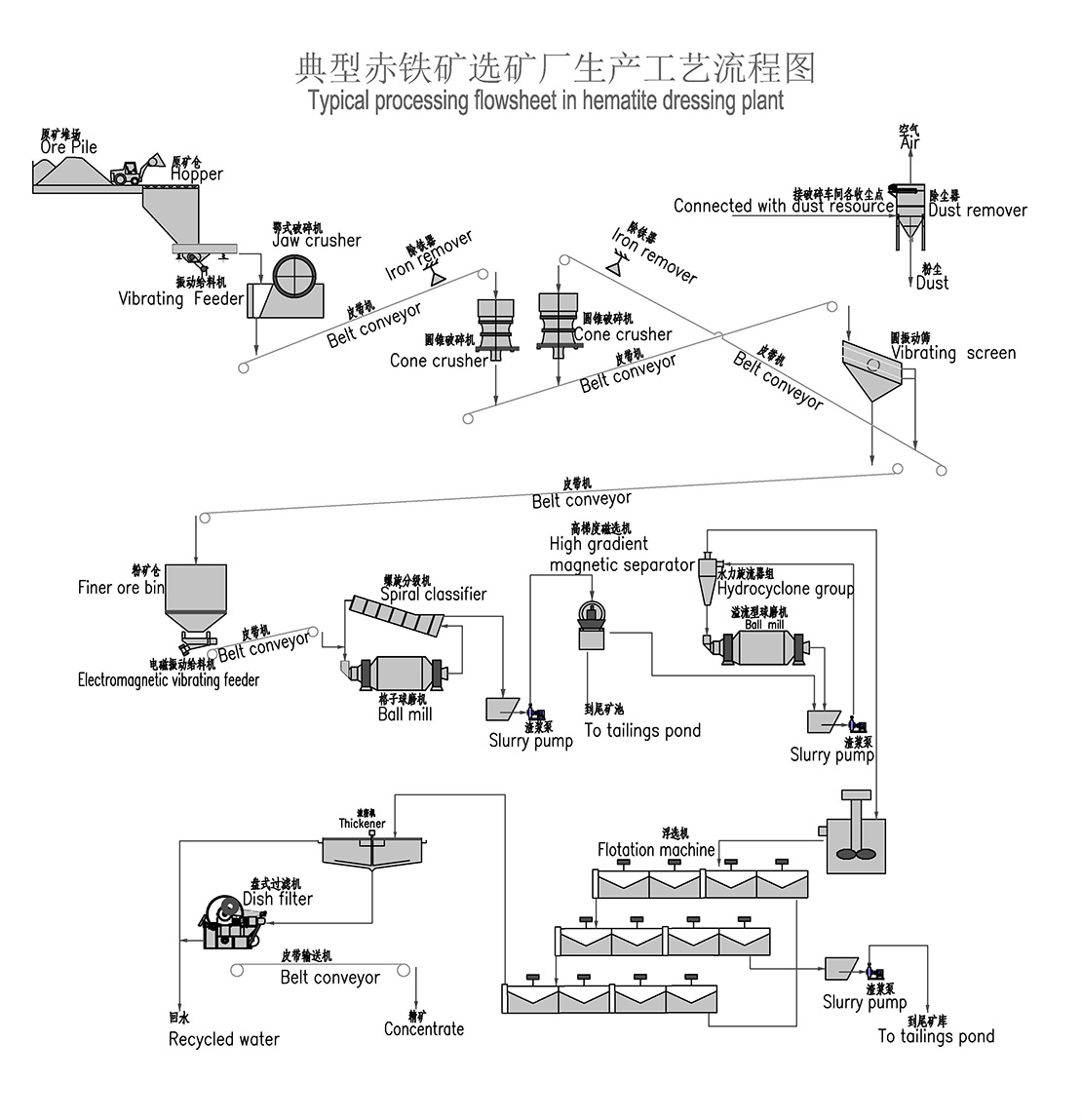

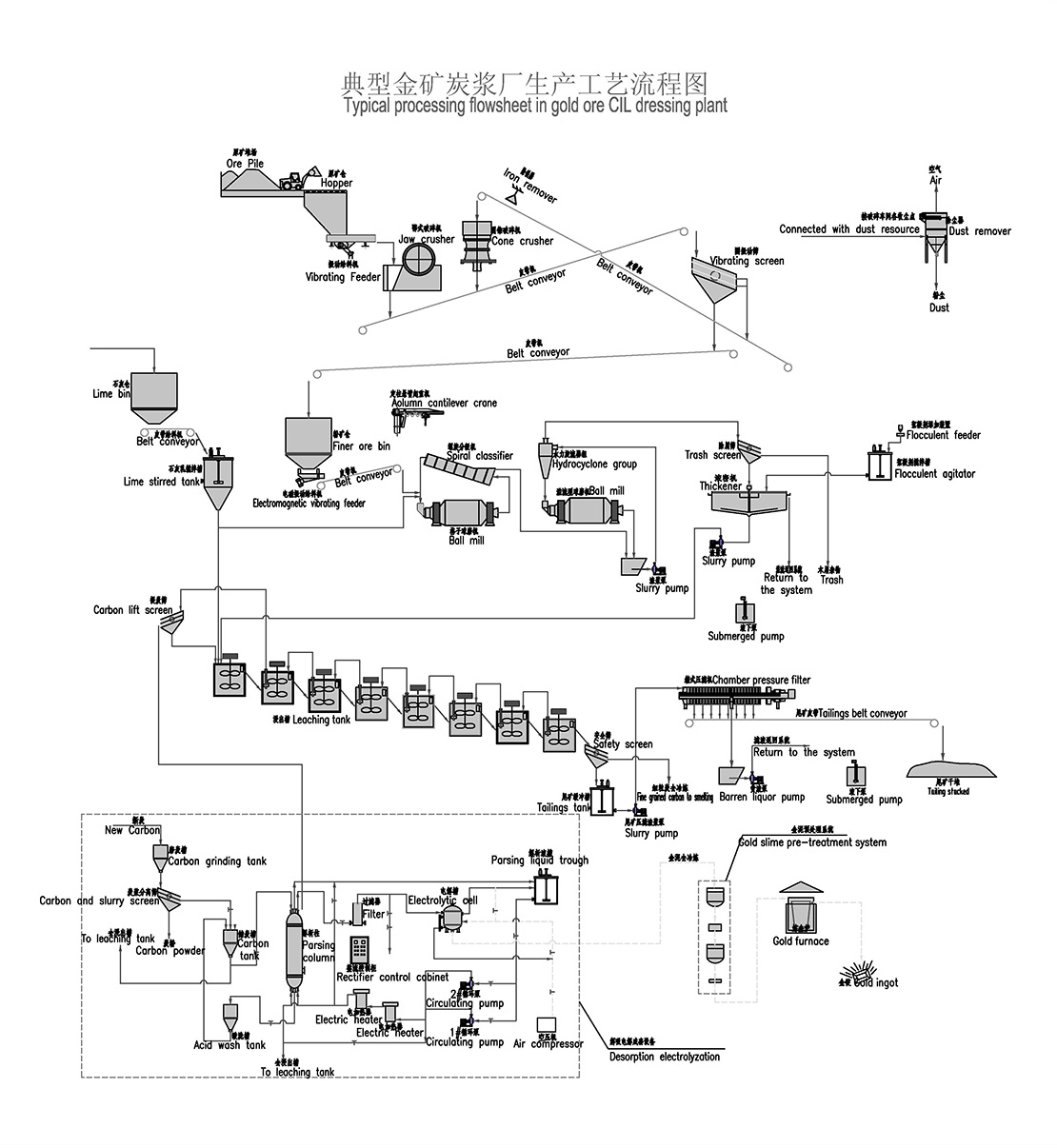

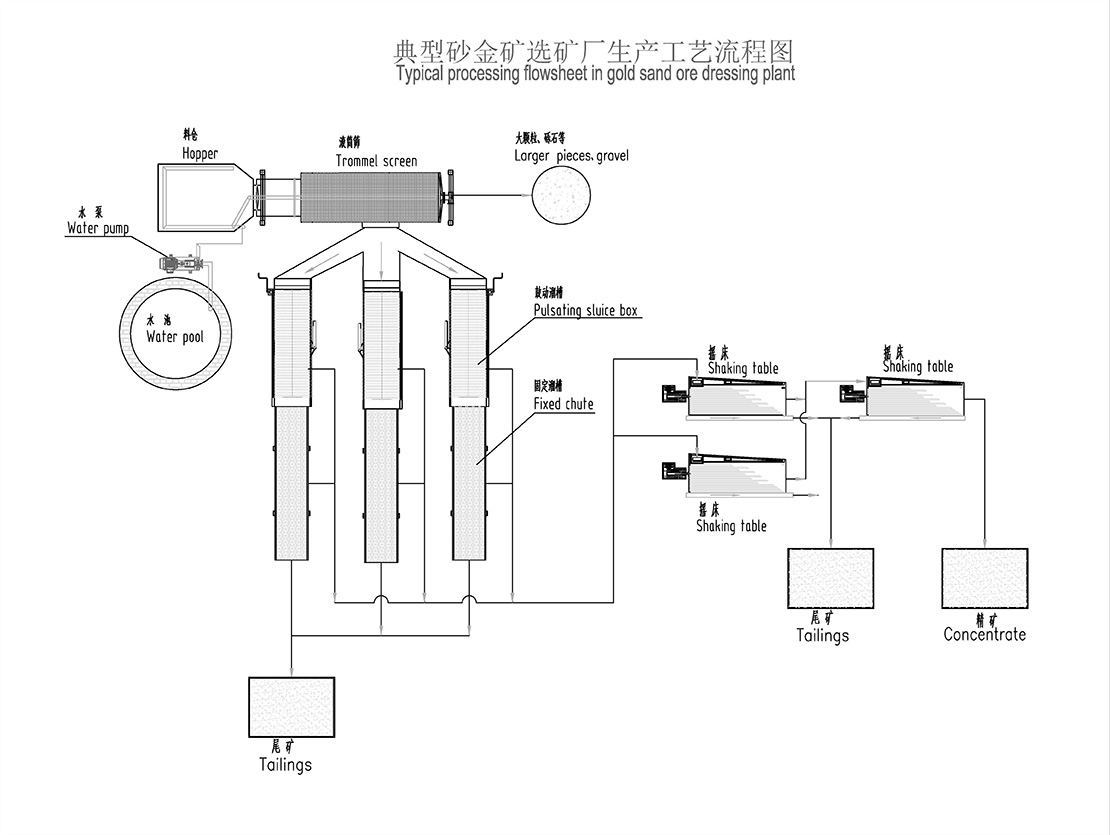

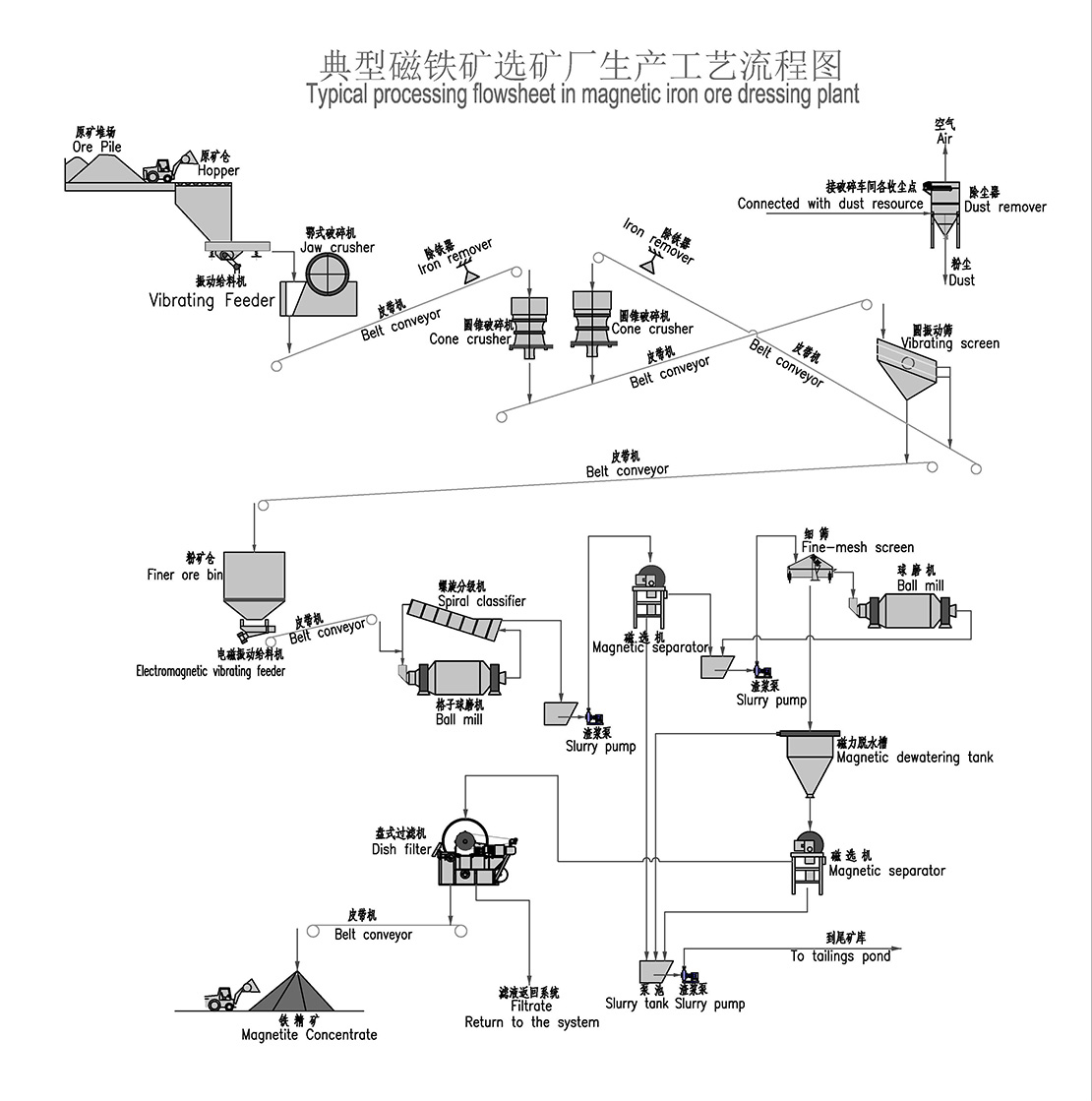

This combined crushing process is suitable for a variety of metal ores including hematite , manganese ore , magnetite , placer gold , gold ore , iron ore , copper ore , and copper ore rock .
1. Raw Material Feeding
Use vibrating feeders to ensure uniform, continuous feeding of ore materials into the crushing system for stable operation.
2. Primary Crushing
Large ore blocks are reduced in size by jaw crushers to facilitate further processing.
3. Secondary Crushing
Based on ore hardness and particle size requirements, cone crushers or impact crushers are employed for secondary crushing.
Hard ores like hematite, magnetite, and copper ores often use cone crushers.
Softer ores such as placer gold and some manganese ores may use impact crushers.
4. Screening and Classification
Vibrating screens classify crushed ore into different particle size ranges.
Oversized material is returned to crushers for further reduction, ensuring uniform product size.
5. Finished Product Stockpiling
Qualified crushed ore products are stockpiled by size for transport or further processing.
Process Highlights
Ensure uniform feeding to avoid equipment overload or blockage.
Select appropriate crushers based on the ore’s hardness and abrasiveness.
Maintain strict control on particle size through screening to ensure product quality.
Use wear-resistant equipment components to handle the abrasive nature of metal ores, improving equipment life.

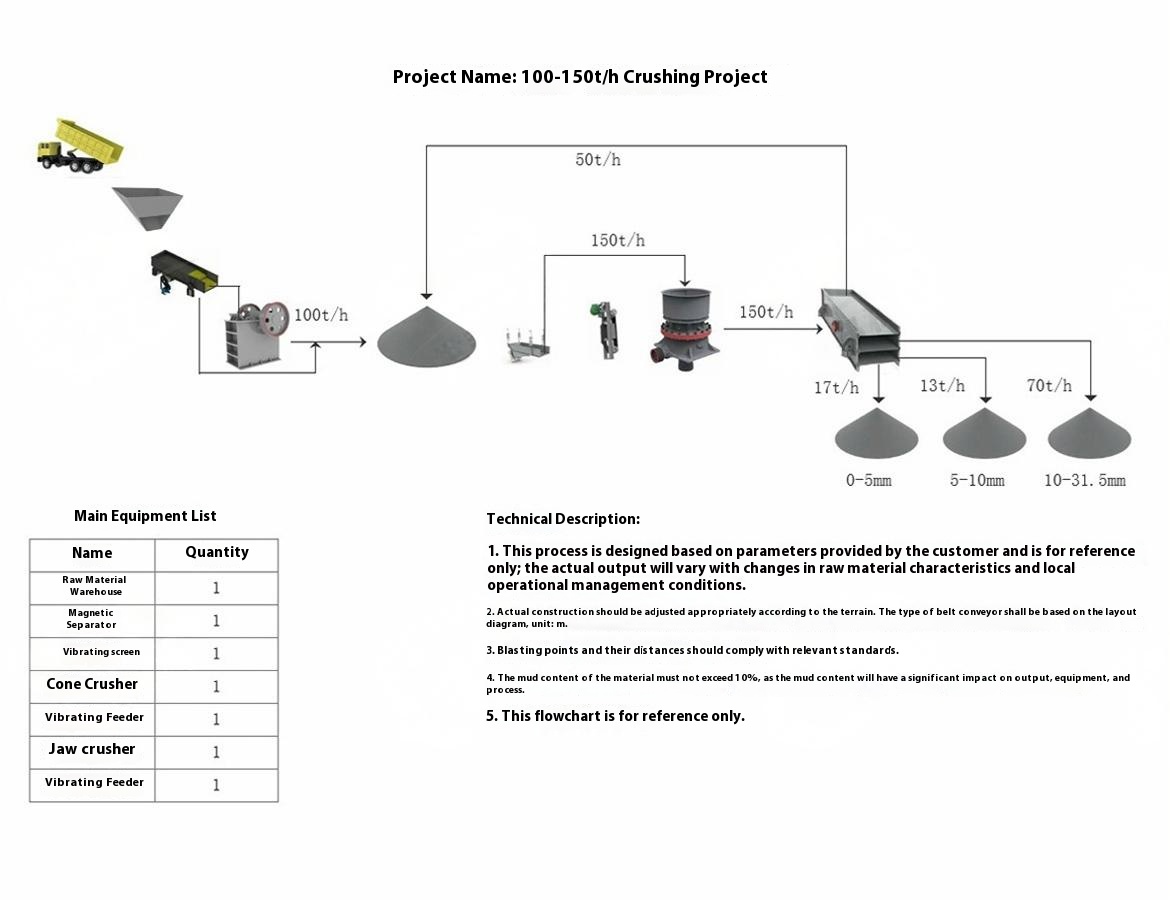

The 100th – 150th crushing project

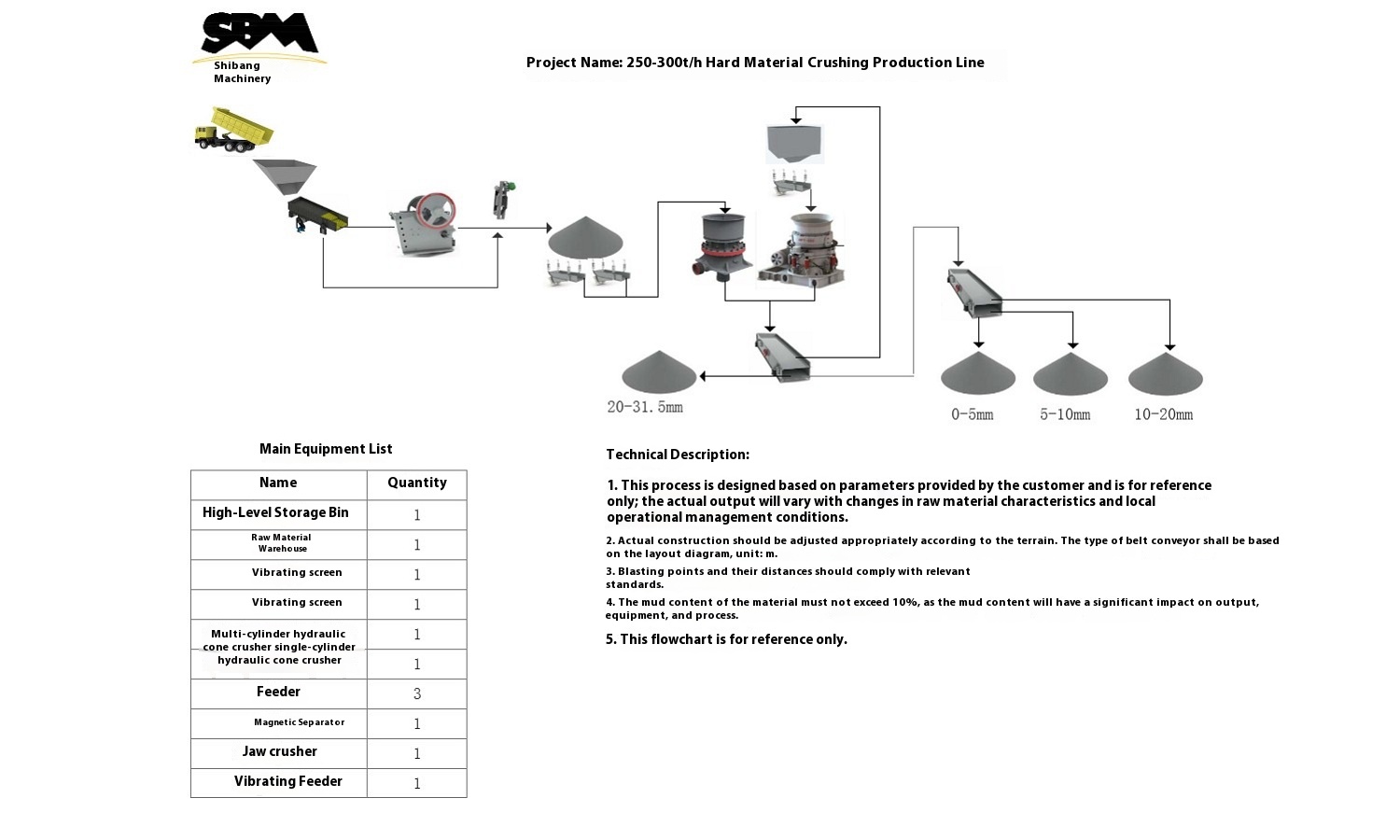

250-300th Hard Materials Crushing Production Line
1000th – 1050th Crusher Production Line
The 100th – 150th crushing project

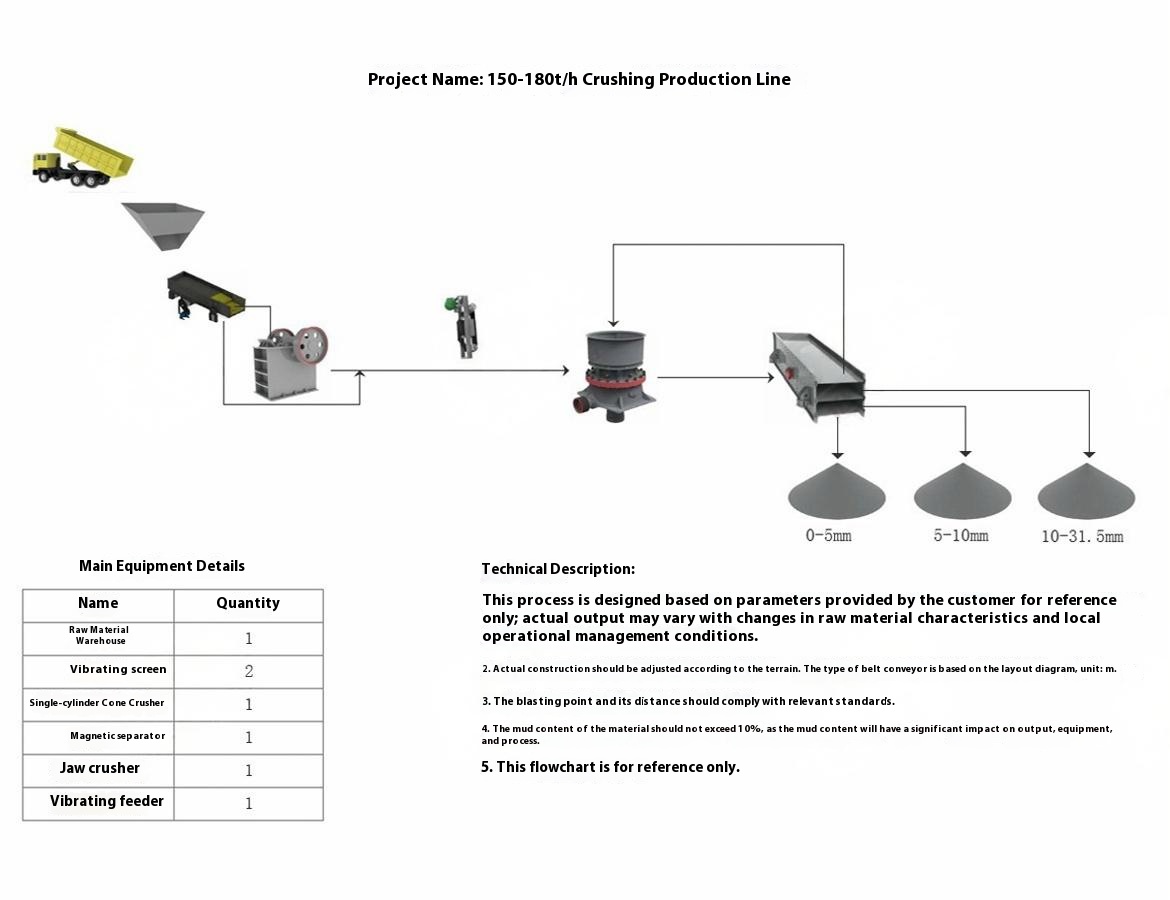

150th – 180th Crusher Production Line
250-300th Hard Materials Crushing Production Line
The 100th – 150th crushing project

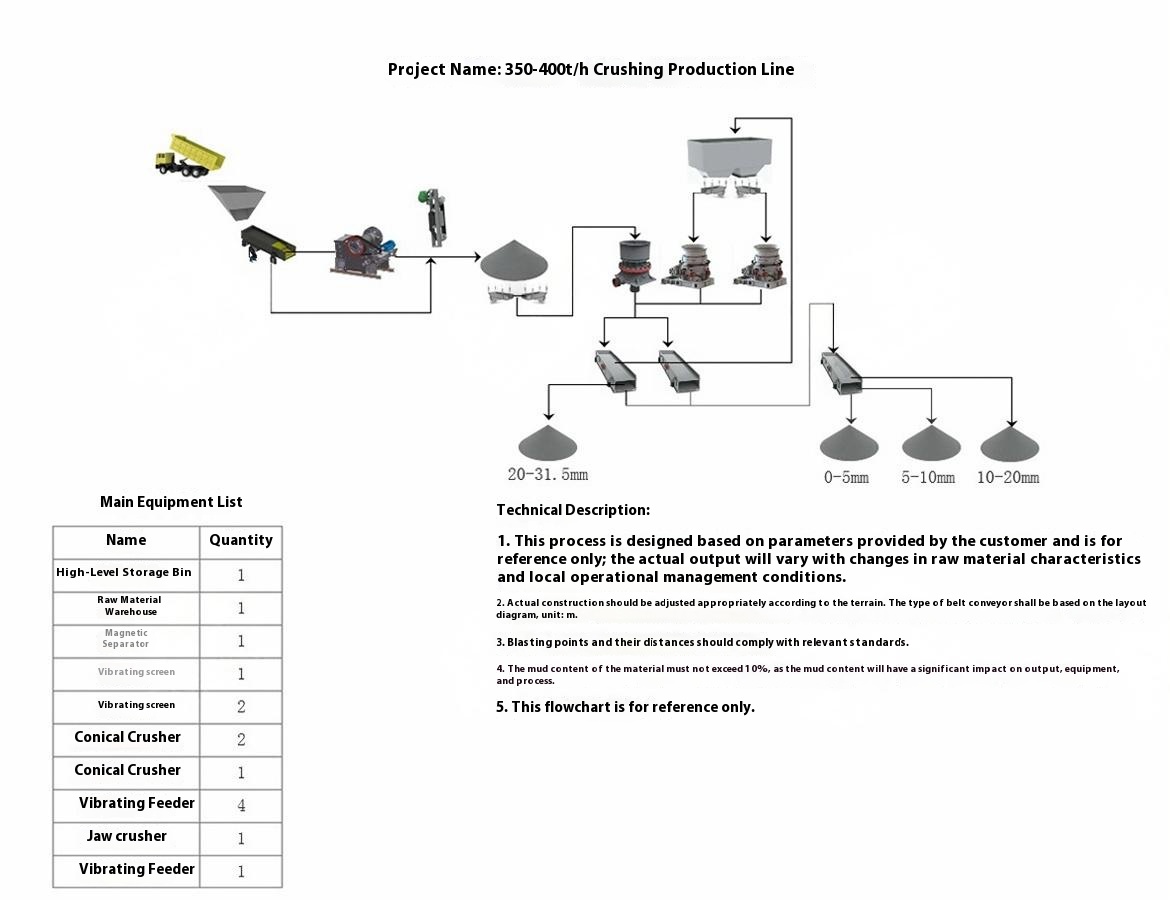

350th – 400th Crusher Production Line
450th – 500th crushing production line

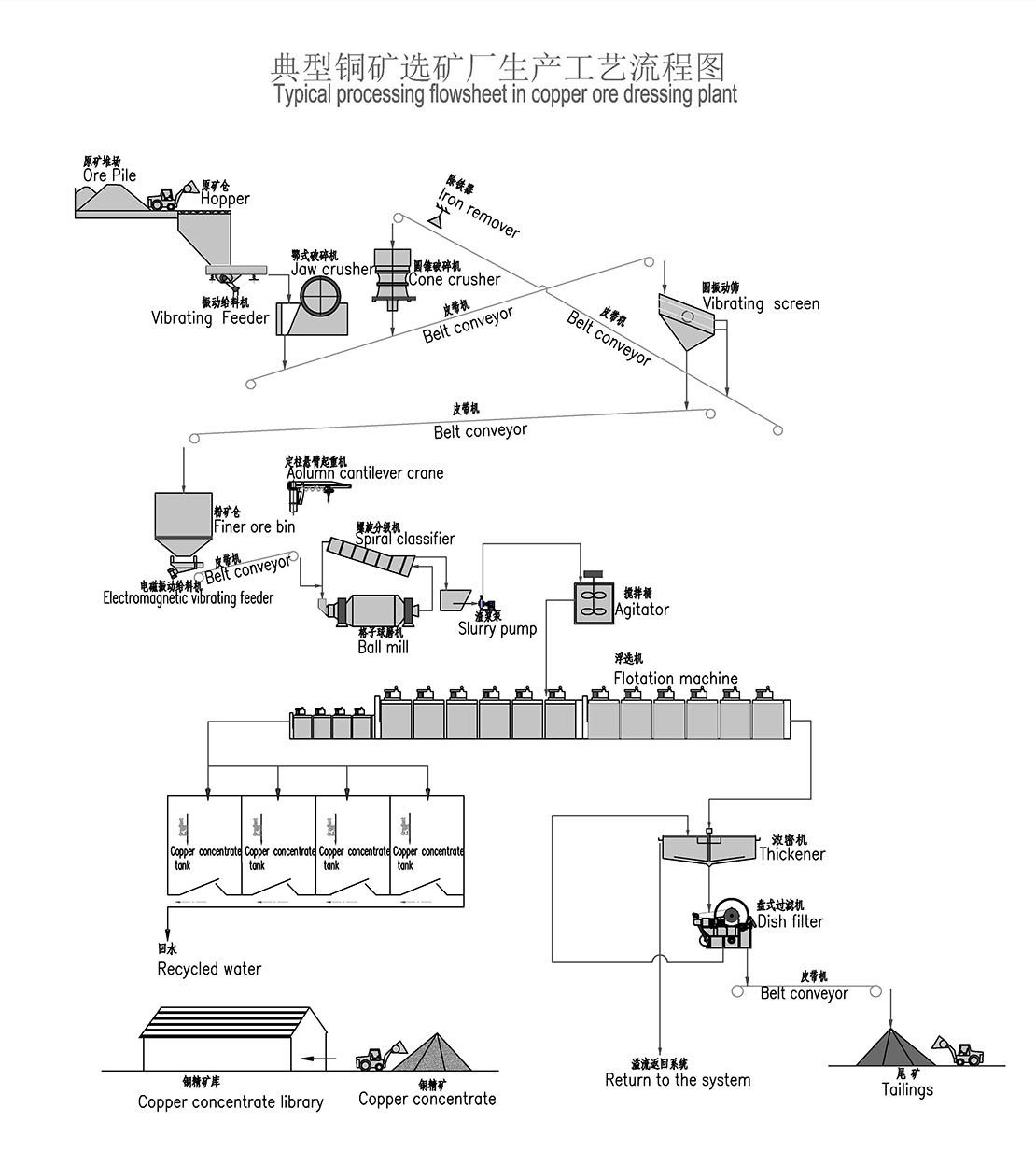

Copper Ore
Gold Mine
Hematite Ore
Magnetite Ore
Manganese Ore
Placer Gold
