Max. Feeding Size: ＜700 mm
Capacity: 200 – 300 t/h
Power: 30 kW
Feeder Trough Size (W × L): 1700 × 4200 mm

Product Overview

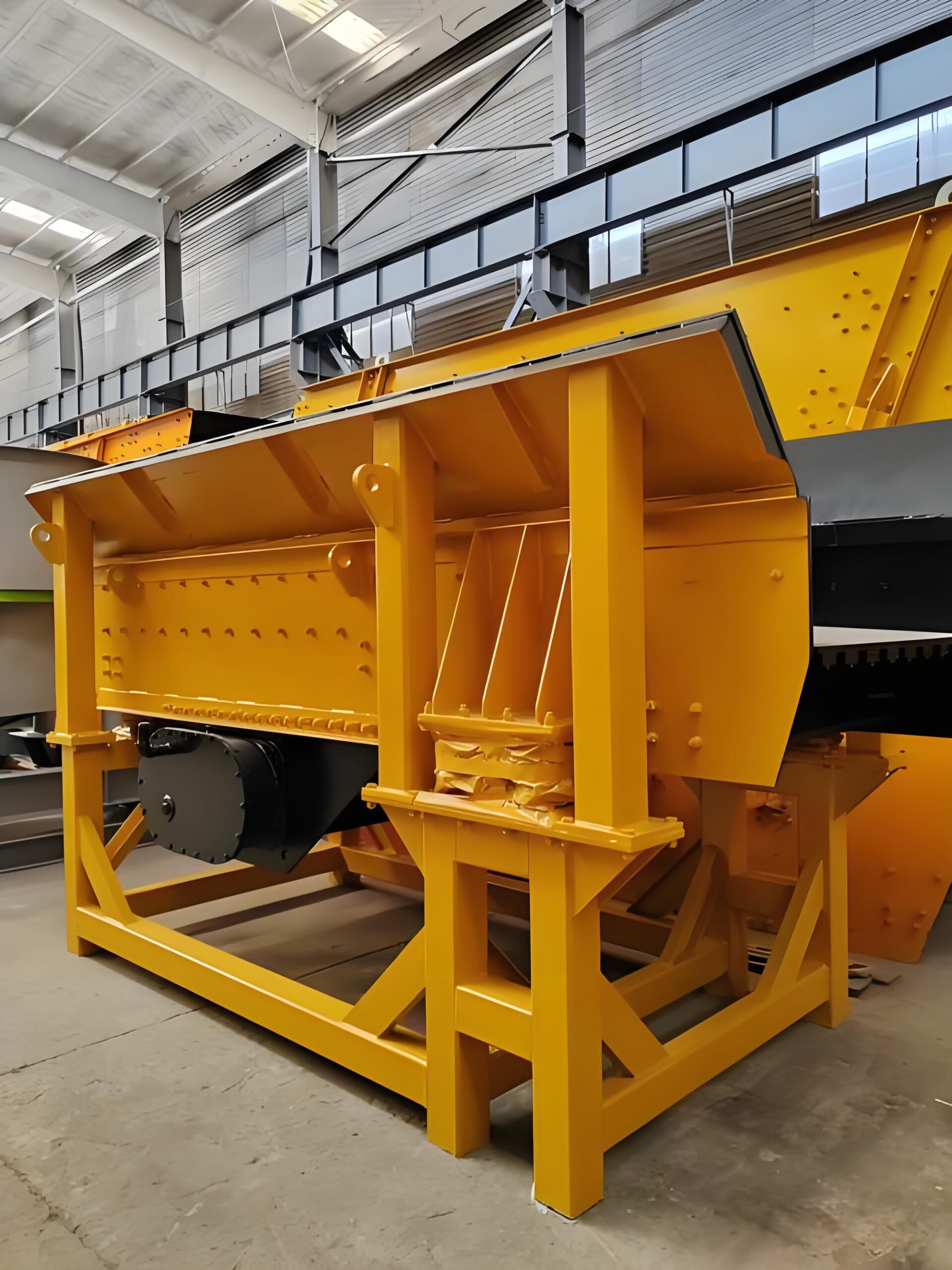

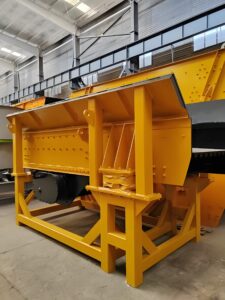

The ZW Series Linear Vibrating Feeder is designed for continuous and uniform feeding of materials into crushing equipment while also performing preliminary screening. It is widely used in combined crushing and screening operations in industries such as mining, building materials, silicate, and chemical industries. This feeder is particularly suitable for feeding jaw crushers and hammer crushers.

Working Principle

The ZW Series Linear Vibrating Feeder operates via a dual eccentric shaft vibrator driven by an electric motor through a V-belt. The two eccentric shafts are synchronized by gears at both ends to rotate in opposite directions. When assembled at a specific angle, the eccentric shafts generate centrifugal force, causing the feeder body to produce a linear reciprocating throwing motion. This vibration continuously propels the material forward during the feeding process.

Key Features

Compact structure with strong excitation force, high feeding capacity, and excellent impact resistance.
Smooth and stable vibration, reliable operation, and long service life.
Optional pre-screening unit available at the front end to remove soil and impurities from raw materials according to customer requirements.
