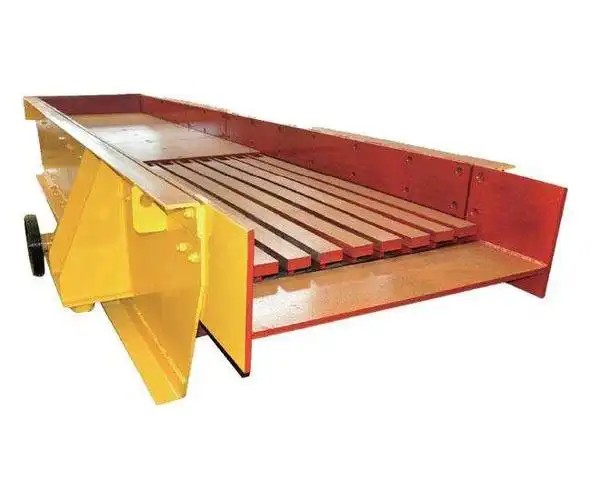

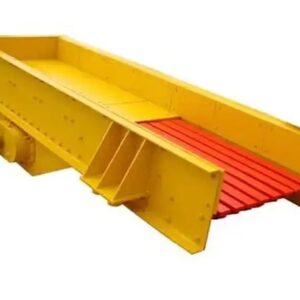

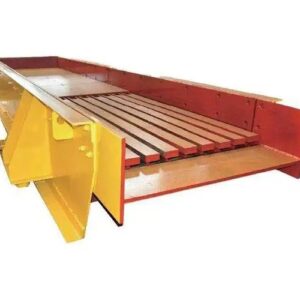

ZD Series Vibrating Feeder — Efficient and Stable Industrial Quantitative Feeding Solution

Product Overview

The ZD series vibrating feeder uses dual vibrating motors as excitation sources, specially designed for industries such as mining feeders, coal vibrating feeders, and metallurgical material conveying equipment. It can evenly and continuously transport block and granular materials from storage bins to downstream crushers or screening devices. It is suitable for automated feeding in sand and gravel production lines, helping enterprises achieve efficient and stable production processes.

Key Features

Stable Vibrating Feeding
Ensures smooth operation, suitable for continuous conveying of various heavy industrial materials.
Maintenance-Free Design to Save Operating Costs
Uses a design without rotating parts, eliminating the need for lubrication and reducing maintenance frequency and costs.
Compact Structure with Easy Installation and Adjustment
Suitable for various sites and installation requirements, allowing quick equipment commissioning.
Low Noise, Energy-Efficient and Environmentally Friendly Equipment
Optimized motor selection reduces energy consumption and improves overall energy efficiency.

Working Principle

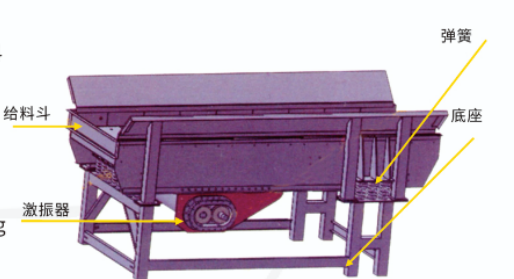

The ZD series vibrating feeder works by two vibrating motors rotating synchronously in opposite directions. The inertial forces in the horizontal axis cancel each other, while forces in the vertical direction add up, causing the feeding trough to perform harmonic vibration along the resultant force direction. This vibration enables materials to be conveyed at a constant speed uniformly, suitable for large-scale continuous industrial material conveying needs.

Technical Specifications

Model	Max Feeding Size (mm)	Capacity (t/h)	Power	Hopper Size (W×L mm)
ZD1036	<500	60 – 80	3 kW × 2	1000 × 3600
ZD1136	<550	80 – 120	4 kW × 2	1100 × 3600
ZD1340	<600	100 – 160	4 kW × 2	1300 × 4000
ZD1545	<680	150 – 200	5.5 kW × 2	1500 × 4500
ZD1745	<700	200 – 300	7.5 kW × 2	1700 × 4500
ZD1950	<750	260 – 350	9 kW × 2	1900 × 5000
ZD2060	<800	400 – 500	11 kW × 2	2000 × 6000
ZD2460	<1000	600 – 800	12 kW × 2	2400 × 6000

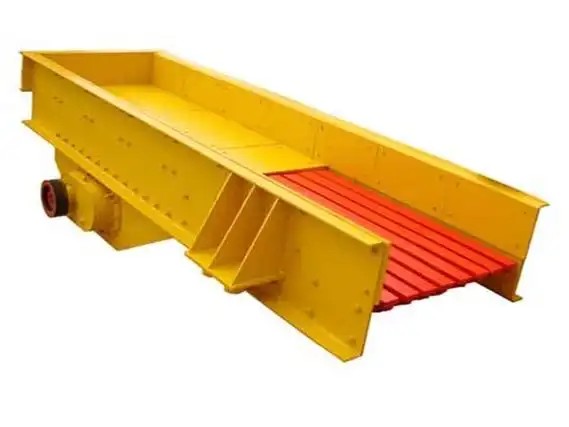

ZD Series Vibrating Feeder

Applications & Industries

Mining Feeders: Provide continuous feeding for mining equipment, improving ore processing efficiency.
Coal Conveying Equipment: Stable transportation of coal materials, ensuring smooth coal processing flow.
Automated Feeding for Sand and Gravel Production Lines: Provide uniform materials for crushers, ensuring high output and stable operation.
Metallurgical Material Conveying: Suitable for quantitative conveying of various ores and metallurgical auxiliary materials.
Vibrating Feeders for Building Materials Industry: Ideal for screening and conveying sand and gravel aggregates.
Chemical and Light Industry Conveying Equipment: Efficiently transport granular and powder chemical raw materials.
