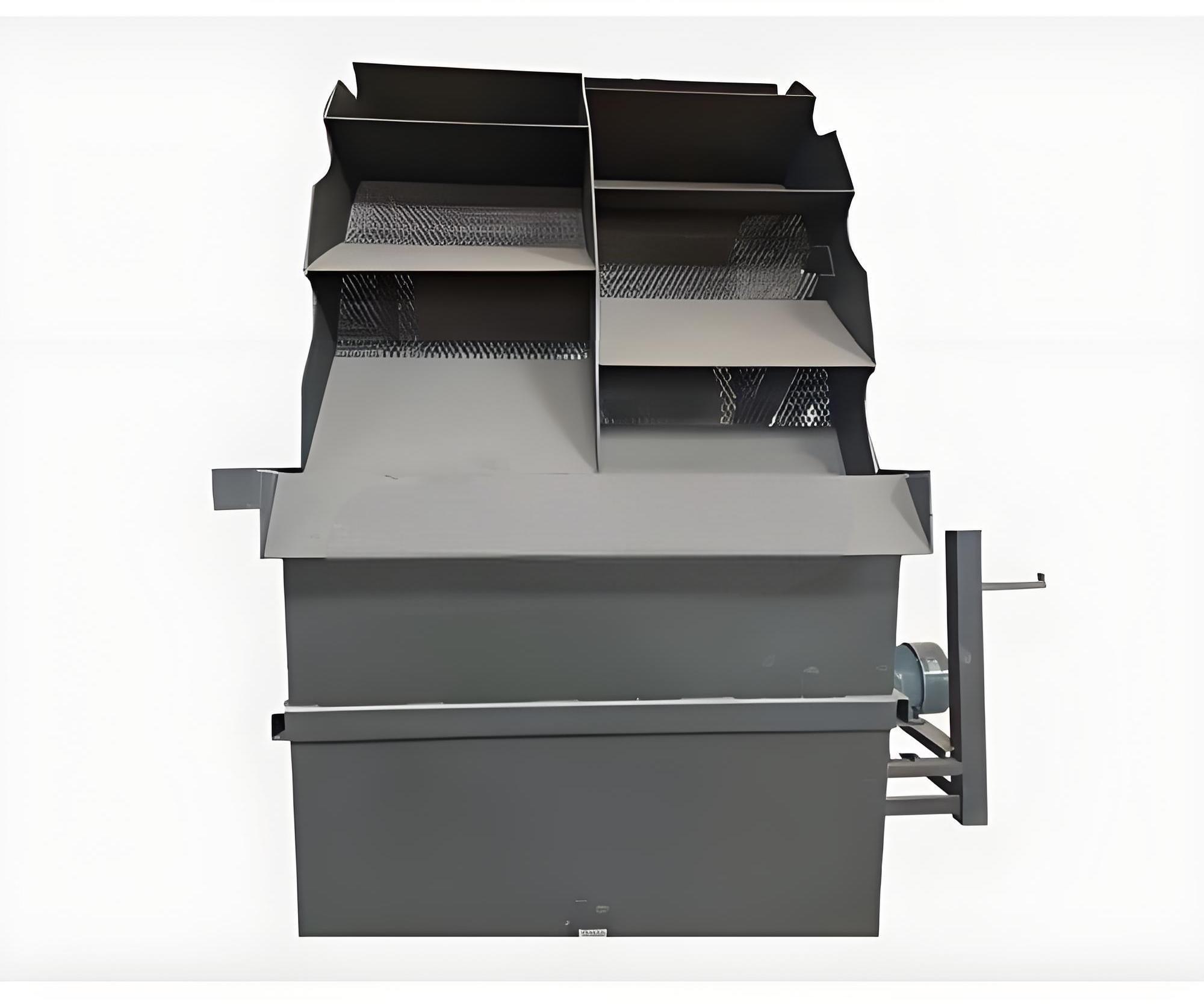

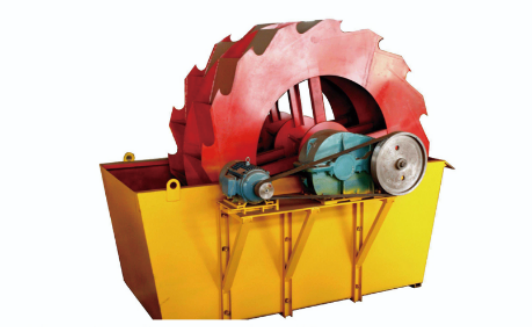

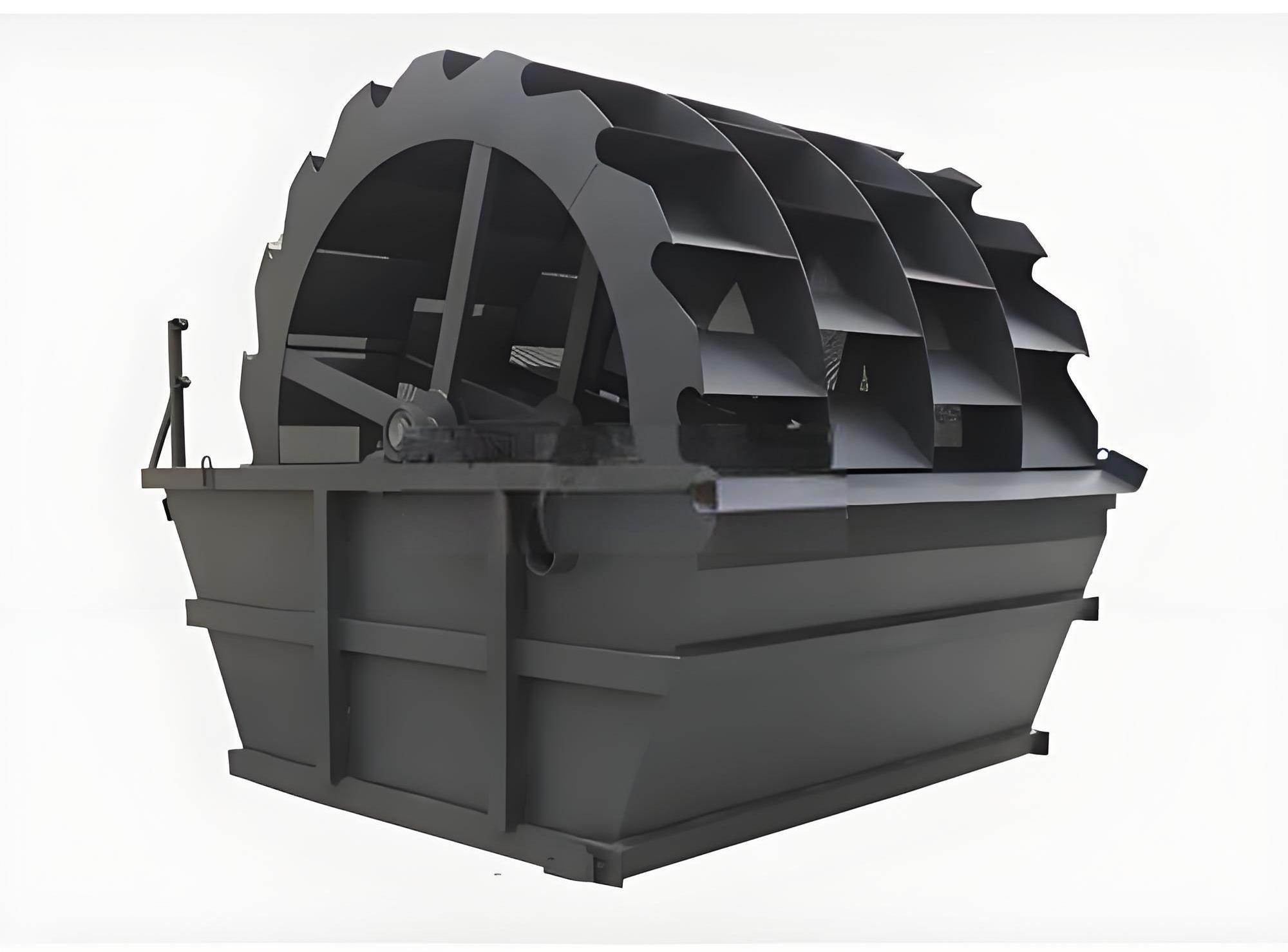

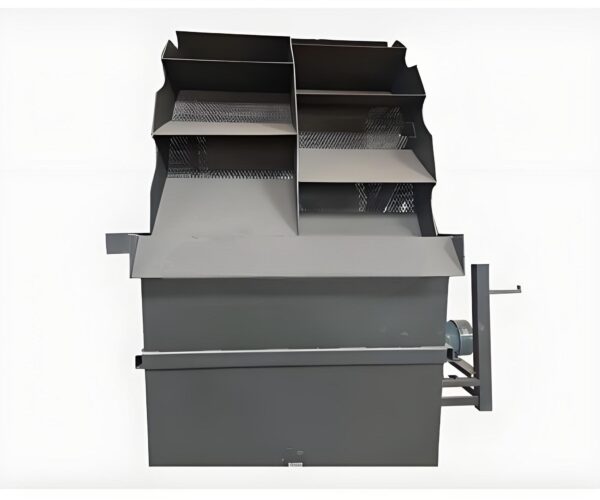

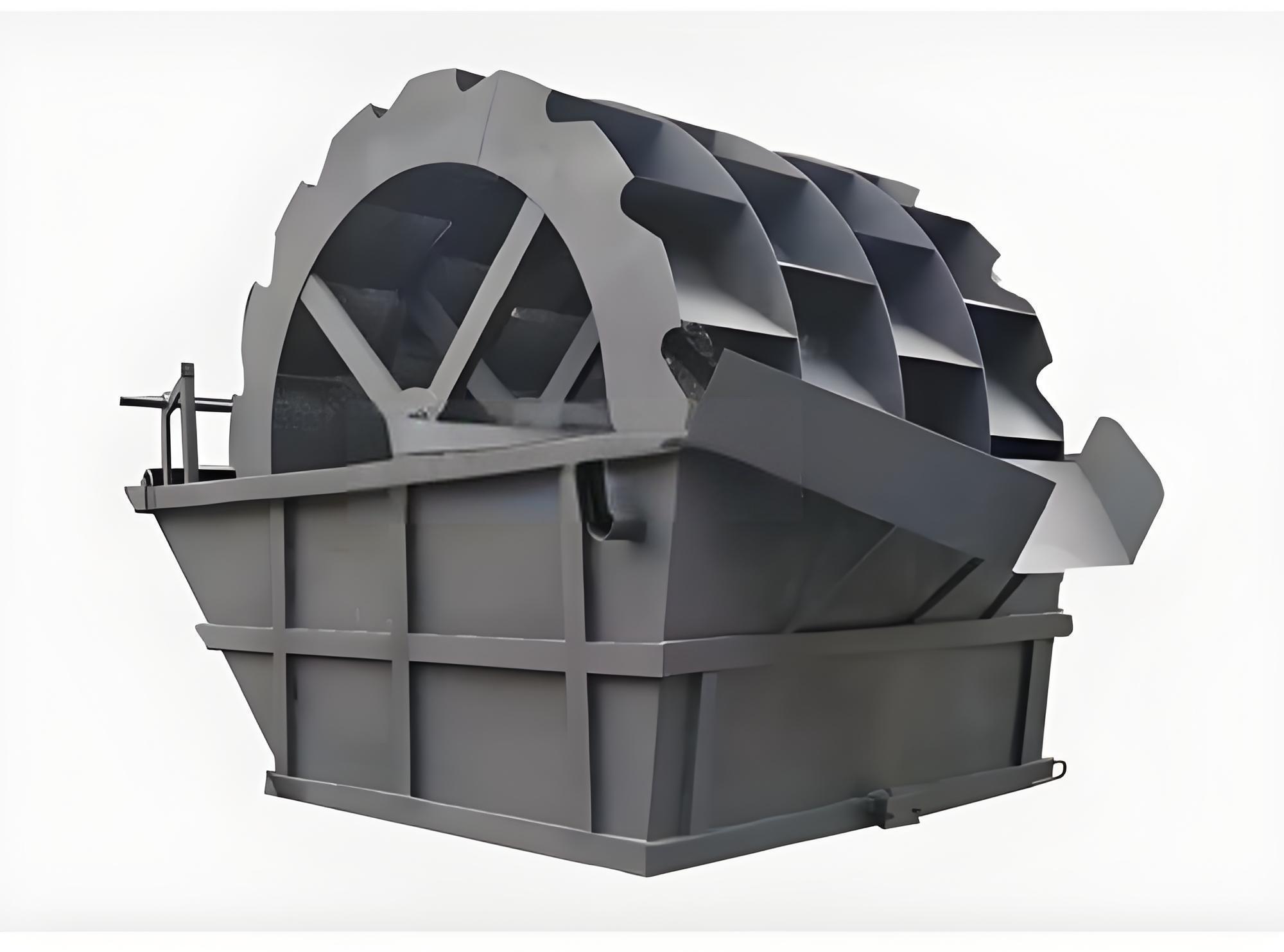

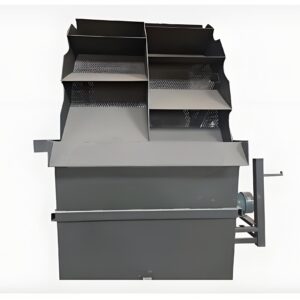

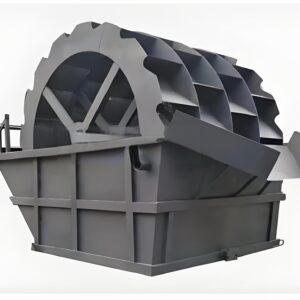

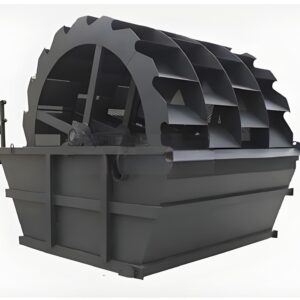

XSD Series High-Efficiency Wheel Sand Washer
Product Overview
The XSD series high-efficiency wheel sand washer is a wheel-type washing device designed to work in conjunction with sand-making machines. It effectively removes tiny stone powder and impurities from mixed sand produced by sand-making machines, significantly improving the quality of the sand. Developed based on the actual conditions of the domestic sand and gravel industry, this high-efficiency sand washer is the ideal choice for upgrading washing equipment in the market.
Application Fields:
-
Construction sites
-
Sand and gravel plants
-
Hydropower concrete dam projects
-
Concrete prefabrication plants
-
Glass plants (quartz sand washing)
-
Oil well backfill pressure sand cleaning and dewatering
Key Features
-
High Washing Efficiency: Excellent cleaning ability, reasonable structure, and large processing capacity.
-
Reliable Operation: The transmission parts are completely separated from water and sand, resulting in low failure rates.
-
Low Energy Consumption: Minimal power usage and reduced sand loss during the washing process.
Technical Specifications
| Model | Wheel Diameter (mm) | Feeding Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|---|
| XSD2610 | 2600 | ≤10 | 50 | 7.5 |
| XSD2816 | 2800 | ≤10 | 80 | 15 |
| XSD3218 | 3200 | ≤10 | 130 | 18.5 |
| XSD3620 | 3600 | ≤10 | 150 | 22 |
Get a Quote Today!
Looking to upgrade your sand washing operations? Contact us now for more details and competitive pricing!
Email: [email protected]
Phone/WhatsApp: +86 18288664797
