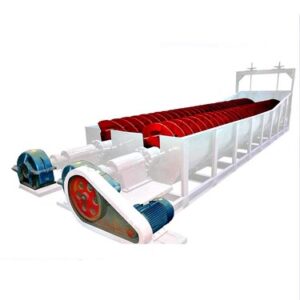

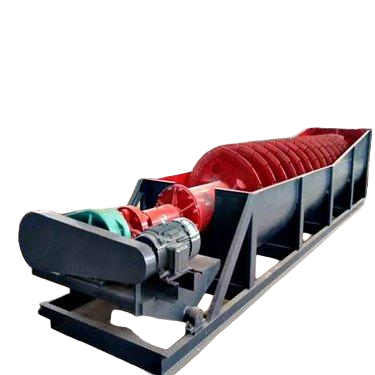

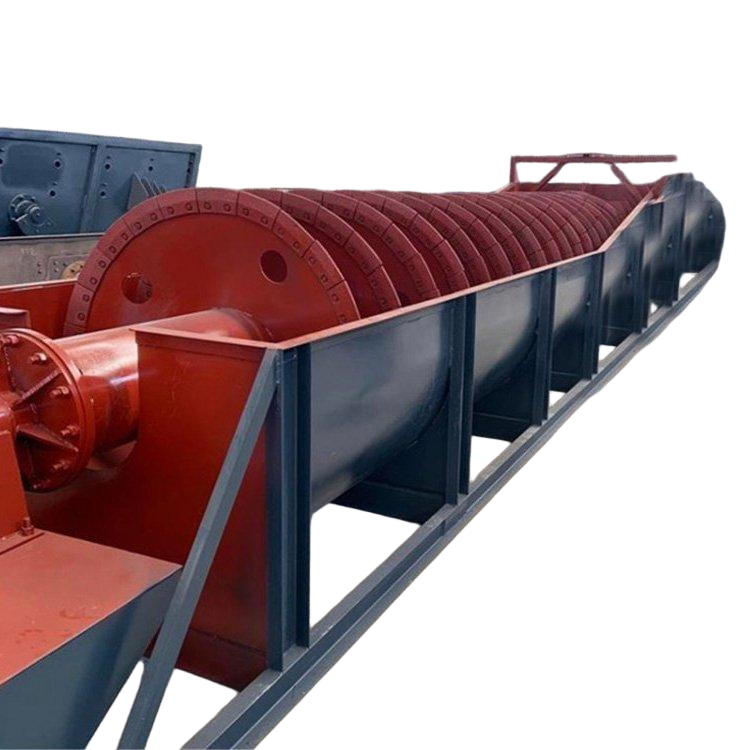

Spiral Sand Washing Machine

Category:

Spiral Sand Washing Machine



Product Introduction

The spiral sand washing machine is an efficient sand cleaning, grading, and dewatering equipment. It is mainly used to remove impurities such as clay, dust, and fine particles from mixed sand. This machine is widely applied in sand and gravel plants, construction sites, hydropower stations, and concrete mixing plants.


Working Principle

Materials enter the inclined spiral trough through the feeding inlet. Driven by the spiral blades, the materials are continuously rolled and agitated. Under the flushing action of water, impurities and fine particles are separated and discharged through the overflow outlet. The cleaned sand is then lifted by the spiral blades and discharged from the outlet, completing the washing process efficiently.


Key Features

  • High Cleaning Efficiency:
    Effectively removes silt, dust, and impurities, achieving a high sand washing rate.

  • Robust Structure & Stable Operation:
    Built with a thickened tank body and high-strength spiral shaft, ensuring long-lasting durability and stable performance.

  • Large Capacity & Energy Saving:
    Suitable for large-scale sand washing needs with low energy consumption and optional water recycling capability.

  • Easy Maintenance:
    Transmission parts are completely separated from water and sand, minimizing wear and simplifying maintenance.


Technical Specifications

Model Spiral Diameter (mm) Tank Length (mm) Max Feed Size (mm) Capacity (t/h) Power (kW) Weight (kg)
XL-508 508 4500 ≤10 20–40 5.5 3150
XL-762 762 6000 ≤10 40–75 7.5 4900
XL-914 914 7500 ≤10 80–120 11 6900
XL-1115 1115 9000 ≤10 100–150 15 9800

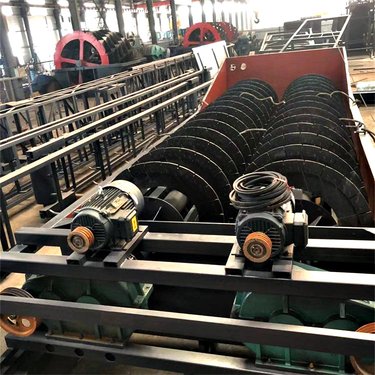

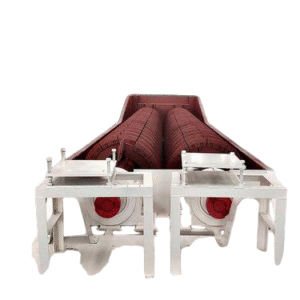

2XL-762 (Double Spiral) 2 × 762 6000 ≤10 80–150 2 × 7.5 8000
2XL-914 (Double Spiral) 2 × 914 7500 ≤10 150–200 2 × 11 11800

Request A Quote Now!

Looking for high-efficiency sand washing solutions?
Contact us today for detailed quotations and expert assistance!

Email: [email protected]
Phone/WhatsApp: +86 18288664797
