Maximum Feeding Size: 50 mm
-
Discharge Adjustment Range: 3–15 mm
-
Capacity: 18–105 t/h
-
Motor Power: 110 kW
PYD Type (Ultra-fine Crushing Type)
-
Used for fine and ultra-fine crushing of hard materials
-
Produces the smallest discharge particle size, suitable for special process requirements
-
Ideal for fine crushing before sand making or grinding preparation
Working Principle

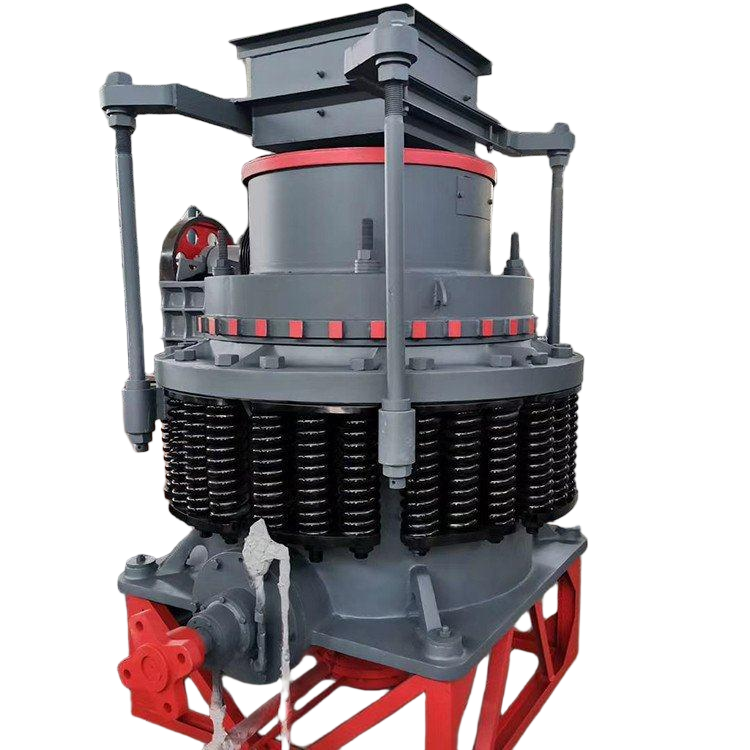

The cone crusher mainly consists of a frame, transmission device, eccentric sleeve, moving cone, and fixed cone.
The motor drives the transmission shaft to rotate via a belt or coupling, causing the eccentric sleeve to rotate around the main shaft. This movement makes the crushing wall perform a swinging motion. Materials enter the crushing chamber from the top and are crushed by the squeezing and bending between the moving cone and the fixed cone, then discharged from the bottom.
Performance Features
-
Simple structure, easy to operate and maintain
-
Large crushing ratio, uniform product particle size
-
Safe and reliable lubrication system with long service life
