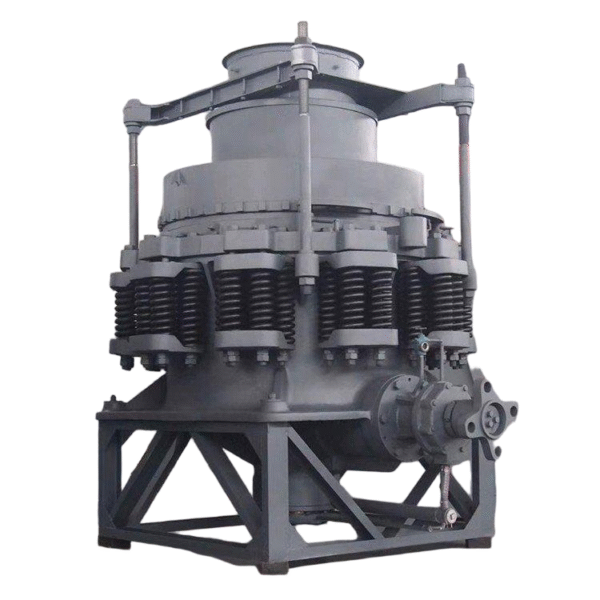

Model: PYD-1200
-
Maximum Feeding Size: 50 mm
-
Discharge Adjustment Range: 3–15 mm
-
Capacity: 18–105 t/h
-
Motor Power: 110 kW
PYD Type (Fine Crushing Type)
-
Designed for fine and ultra-fine crushing of hard materials
-
Produces the smallest discharge particle size, ideal for special process requirements
-
Suitable for fine crushing before sand making or grinding operations
Working Principle
The cone crusher mainly consists of the frame, transmission device, eccentric sleeve, moving cone, and fixed cone.
The motor drives the transmission shaft to rotate via a belt or coupling, which in turn drives the eccentric sleeve to rotate around the main shaft. This causes the crushing wall to swing. Materials are fed into the crushing chamber from the top and are crushed by compressive and bending forces between the moving cone and the fixed cone. The crushed materials are then discharged from the bottom.
Performance Features
-
Simple structure, easy operation and maintenance
-
High crushing ratio with uniform product particle size
-
Safe and reliable lubrication system, ensuring long service life
