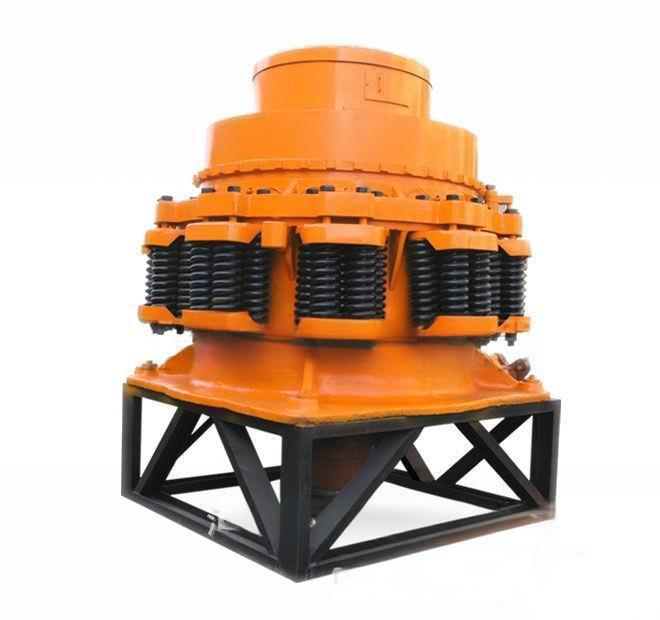

Model: PYB-600
-
Maximum Feeding Size: 65 mm
-
Discharge Adjustment Range: 12–25 mm
-
Capacity: 25–40 t/h
-
Motor Power: 30 kW
PYB Type (Medium Crushing Type)
-
Suitable for crushing materials with medium hardness
-
Moderate capacity, ideal for primary or secondary crushing
-
Commonly used in stone production lines or for primary crushing in mining
Working Principle
The cone crusher mainly consists of the frame, transmission device, eccentric sleeve, moving cone, and fixed cone.
The motor drives the transmission shaft to rotate through a belt or coupling, causing the eccentric sleeve to rotate around the main shaft. This makes the crushing wall perform a swinging motion. Materials are fed into the crushing chamber from the top and are crushed by compression and bending forces between the moving cone and the fixed cone. The crushed materials are then discharged from the bottom.
Performance Features
-
Simple structure, easy to operate and maintain
-
High crushing ratio with uniform product size
-
Safe and reliable lubrication system with long service life
-
Easy replacement of parts with low operating cost
