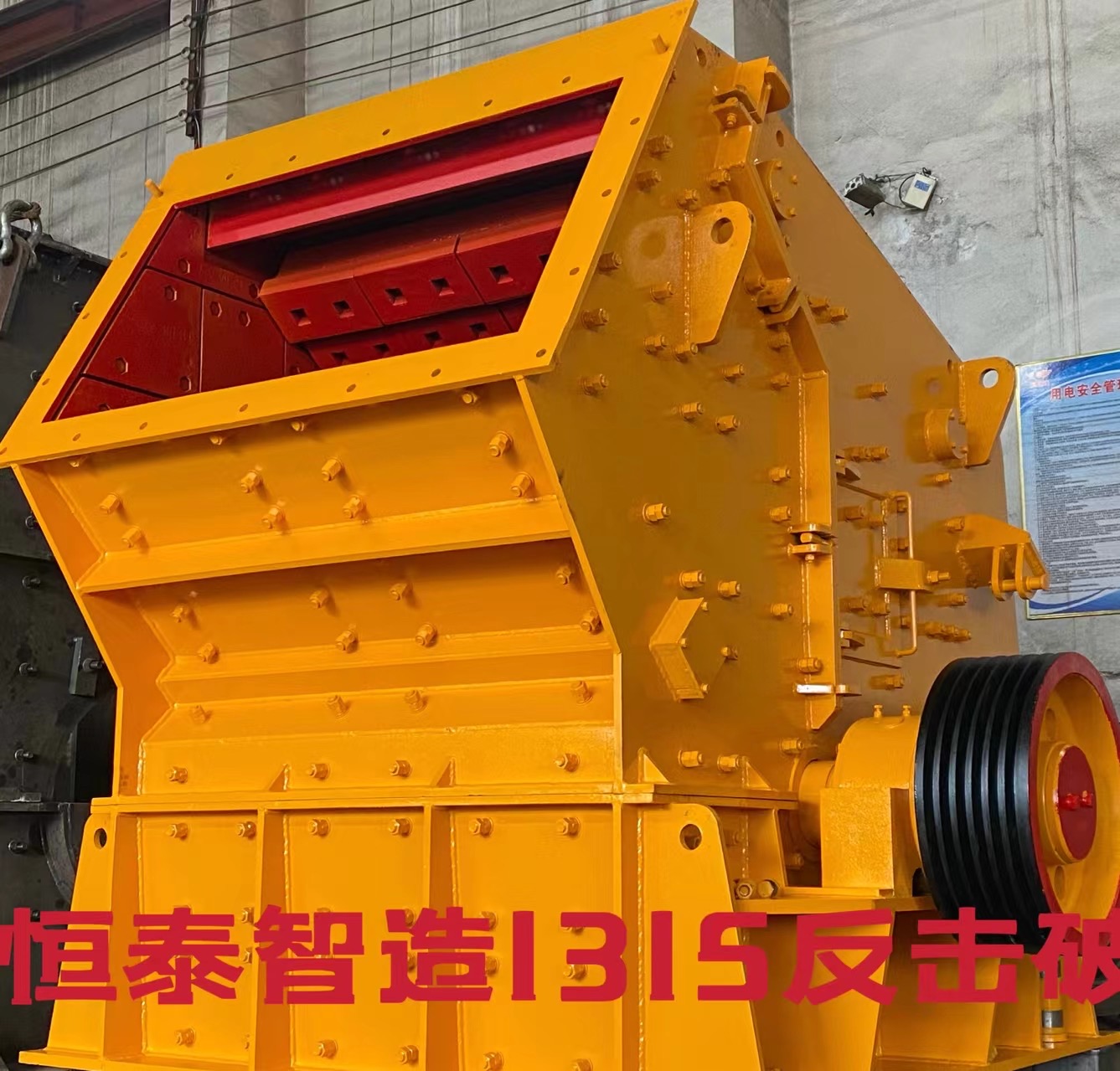

PF-1315 Impact Crusher

PF-1315 Impact Crusher

• Applicable Materials: Hard rock ores, soft rock ores, construction waste, metallurgical waste, etc.

• Application Fields: Mining, construction materials, highways, railways, water conservancy, and related industries.

Working Principle

1. Feeding: Materials enter the crusher through the feed opening.

2. High-Speed Rotating Rotor: The internal rotor rotates at high speed and is equipped with multiple hammers or blow bars.

3. Material Projection & Impact: The material is thrown onto the rotating rotor and collides violently with the hammers or blow bars.

4. Impact Plate Collision: After the initial impact, materials are projected toward the outer impact plates for secondary crushing.

5. Final Discharge: After repeated collisions and crushing, materials that meet the desired particle size are discharged through the outlet at the bottom of the machine.

6. Adjustment & Safety Mechanisms: The crusher is equipped with adjustable impact plate positions and rotor speed controls to precisely regulate output size and efficiency. Overload protection and safety devices ensure secure, stable operation.

Technical Specifications

• Model: PF-1315 Impact Crusher

• Rotor Size: Φ1300×1500 mm

• Feed Opening Size: 860×1520 mm

• Maximum Feed Size: 350 mm

• Processing Capacity: 120–260 t/h

• Motor Power: 200–220 kW

• Weight: 24 t

• Overall Dimensions: 2930×2760×3050 mm
