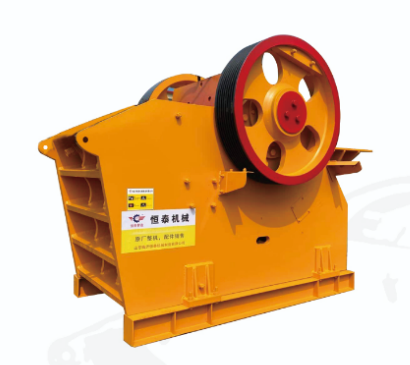

PEV Series European Jaw Crusher – Product Overview

The PEV Series European Jaw Crusher is specially designed for crushing ores, rocks, slags, and other materials with compressive strength up to 300MPa. Widely used in metallurgy, mining, chemical, cement, construction, refractory, and ceramic industries, it is ideal for medium and fine crushing of various medium-hard ores and rocks.

When seeking efficient crushing of hard and abrasive materials, the PEV Series Jaw Crusher stands out with internationally advanced crushing technology and manufacturing standards.

PEV Series European Jaw Crusher Working Principle

The PEV Series Jaw Crusher mainly crushes ores and large materials into medium-sized particles, also suitable for producing materials for roadbeds and construction aggregates. It is widely used in mining, smelting, construction, highways, railways, water conservancy, and chemical industries, optimized for materials with compressive strength not exceeding 300MPa.

PEV Series European Jaw Crusher Key Features

Durable Moving Jaw Assembly
Constructed with high-quality cast steel parts and driven by two large cast steel flywheels, ensuring exceptional reliability. The heavy-duty eccentric shaft is forged for enhanced strength and durability.
Integrated Cast Steel Bearing Housing
Improves structural integrity and reduces maintenance needs.
Finite Element Analysis Enhanced Design
Provides higher machine strength and operational stability.
Symmetrical “V” Shaped Crushing Chamber
Ensures the actual feed opening width matches the nominal size for better material processing.
Quick and Convenient Discharge Opening Adjustment
Enhances operational flexibility.
Larger, Higher Load Capacity Bearings
Equipped with oversized eccentric shaft bearings and efficient labyrinth seals for extended service life.
Toothed Protective Plates
Increase the effective jaw plate length, boosting crushing capacity and output.

PEV Series European Jaw Crusher Specifications & Performance Parameters

Model	Feed Opening Width (mm)	Feed Opening Depth (mm)	Motor Power (kW)	Output Size Range (mm)	Capacity (tph)
PEV500x750	750	500	55 – 75	0 – 30	20 – 80
PEV600x900	900	600	55 – 75	0 – 35	50 – 110
PEV750x1060	1060	750	75 – 110	0 – 45	70 – 170
PEV950x1250	1250	950	110 – 150	0 – 60	150 – 380
PEV1200x1600	1600	1200	150 – 250	0 – 90	520 – 1275
PEV1500x2000	2000	1500	250 – 400	0 – 105	760 – 1590

Why Choose PEV Series European Jaw Crusher?

Advanced crushing technology combined with robust European manufacturing quality.
High crushing efficiency and reliability for processing hard and abrasive materials.
Easy maintenance with durable parts and user-friendly adjustments.
Wide application across many industrial sectors.

Contact us today to learn how the PEV Series Jaw Crusher can improve your crushing operations with superior performance and longevity.
