PE600×900 Jaw Crusher

The PE600X900 jaw Crusher series jaw crushers are mainly used for medium-sized crushing of various ores and large materials. They can also be used to produce stone materials required for roadbeds and aggregates for construction. Jaw crushers are widely applied in mining, metallurgy, building materials, highways, railways, water conservancy, and chemical industries. They are best suited for crushing various soft and hard ores with a compressive strength not exceeding 300 MPa.

Category:

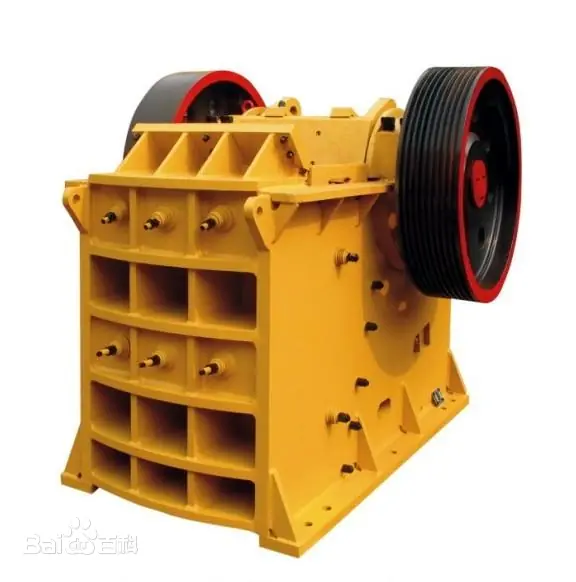

PE600×900 Jaw Crusher — Product Overview



The PE600×900 jaw crusher features a deep “V”-shaped crushing chamber formed by a dynamic and static jaw combination, providing strong crushing performance and high throughput. Its body dimensions are 2190 × 2206 × 2300 mm, and it is equipped with a 55–75 kW motor that drives the eccentric shaft at a speed of 250 rpm.



With a processing capacity of 50–160 tons per hour (depending on material characteristics), it supports a maximum feeding size of 500 mm and offers a discharge opening adjustment range of 65–160 mm. The total machine weight is approximately 17 tons.
Engineered for low noise and environmental performance, this model is especially suitable for crushing hard rocks like granite. It can be configured with cone crushers to form a complete production line, ensuring stable output of multiple aggregate sizes in medium-scale stone processing plants.



PE600×900Jaw Crusher

Parameter Value
Overall Dimensions (L×W×H) 2190 × 2206 × 2300 mm
Weight 17 tons
Motor Power 55–75 kW
Max. Feeding Size ≤ 500 mm
Discharge Adjustment Range 65–160 mm
Capacity 50–160 t/h (depending on material)
Color Customizable

PE600×900Jaw CrusherTypical Materials for Crushing

This model is suitable for medium-hard to hard materials, including:

  • Granite

  • Basalt

  • Pebbles (River Stones)

  • Dolomite

  • Bluestone (Limestone Variant)

PE600×900Jaw Crusher PE600×900Jaw Crusher
