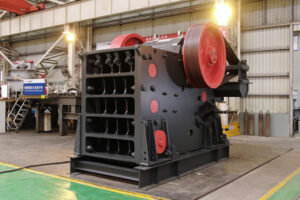

PE1200×1500Jaw Crusher

PE1200×1500Jaw CrusherWorking Principle

The PE1200×1500 jaw crusher operates by compressing materials between two jaw plates — one fixed and one movable. Driven by a motor and pulley system, the movable jaw performs a reciprocating motion that crushes the material. This machine is ideal for primary crushing and is capable of reducing large rocks into intermediate-sized particles for further processing.

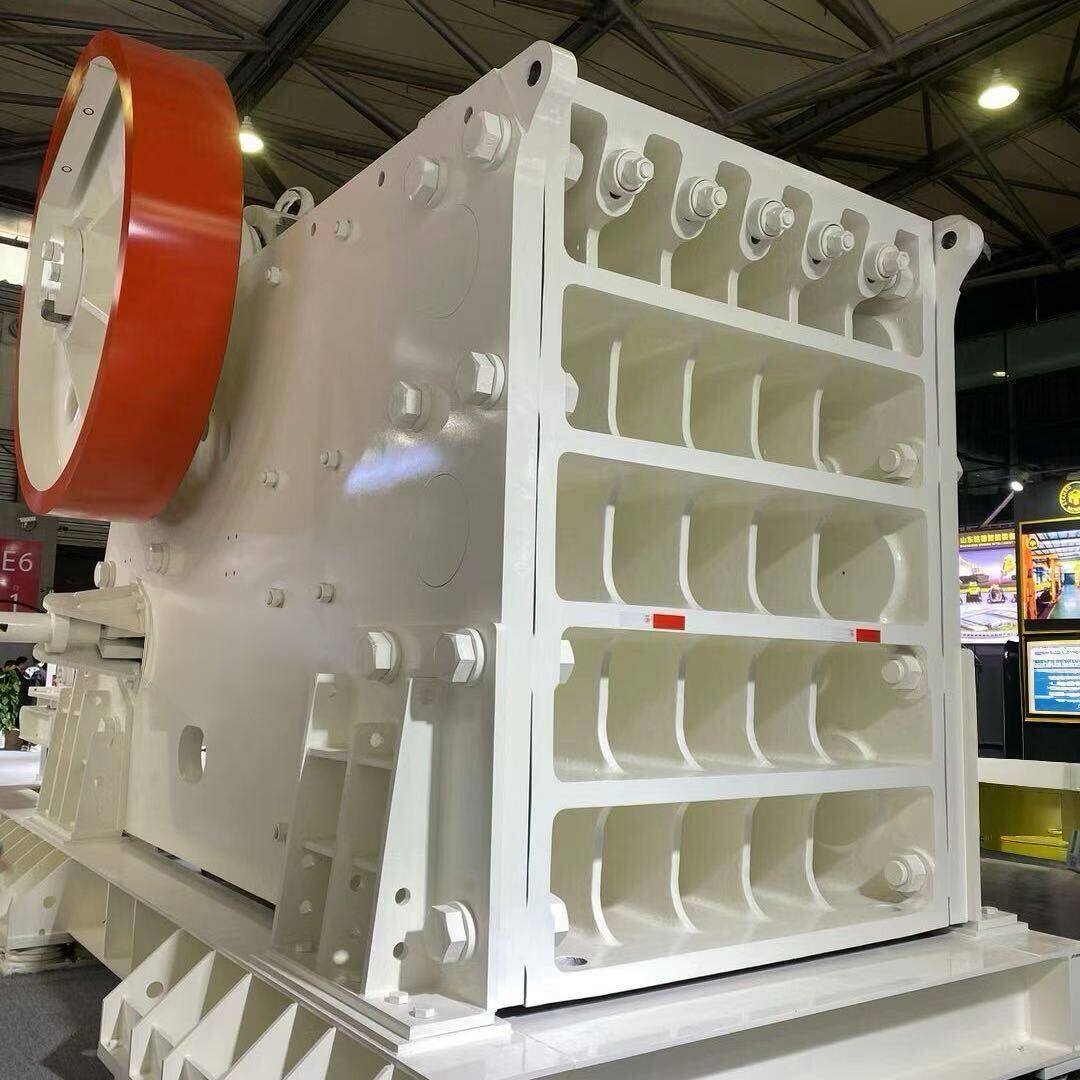

PE1200×1500 Jaw Crusher

Product Overview

The PE1200×1500 jaw crusher is a heavy-duty primary crushing machine designed for large feed sizes and high-capacity processing. It is widely used as the first-stage crusher in mineral and rock crushing operations, especially suitable for materials with a compressive strength of up to 320 MPa. It efficiently reduces large blocks of granite, ore, basalt, and dolomite into medium-sized aggregates in a single pass.

PE1200×1500Jaw CrusherTechnical Specifications

Item	Specification
Model	PE1200×1500
Feed Opening Size (mm)	1200 × 1500
Maximum Feed Size (mm)	≤1020
Discharge Adjustment Range (mm)	150 – 300
Processing Capacity (t/h)	400 – 800
Motor Power (kW)	160
Overall Dimensions (mm)	4850 × 3220 × 3680
Machine Weight	100.9 tons
Color	Customizable upon request

PE1200×1500Jaw CrusherTypical Materials Crushed

Oversized granite blocks
Hard ores
Basalt
Dolomite (white limestone)
Other hard and abrasive rocks

PE1200×1500Jaw CrusherApplication Fields

Mining
Metallurgy
Chemical industry
Building materials
Electric power
Water conservancy
Transportation infrastructure

Often integrated into complete stone crushing lines alongside cone crushers, impact crushers, and sand-making machines.

PE1200×1500Jaw CrusherProduct Features

Deep Crushing Chamber
Enhances crushing efficiency and throughput.
High Load Capacity
Sturdy frame structure designed to handle heavy-duty material loads.
Superior Stability
Equipped with high manganese steel jaw plates and a robust cast steel movable jaw assembly.
Extended Service Life
Digital monitoring of component performance improves longevity and reduces downtime.
Simple Structure
Easy to maintain and repair, resulting in lower operational costs.
Low Noise Operation
Meets national noise emission standards, reducing environmental impact at the worksite.
