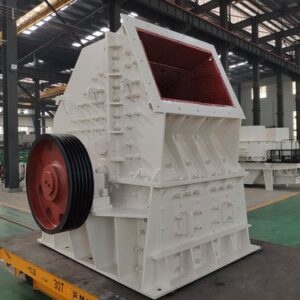

PCZ 2024 Heavy-Duty Hammer Crusher

PCZ2024 Heavy-Duty Hammer Crusher

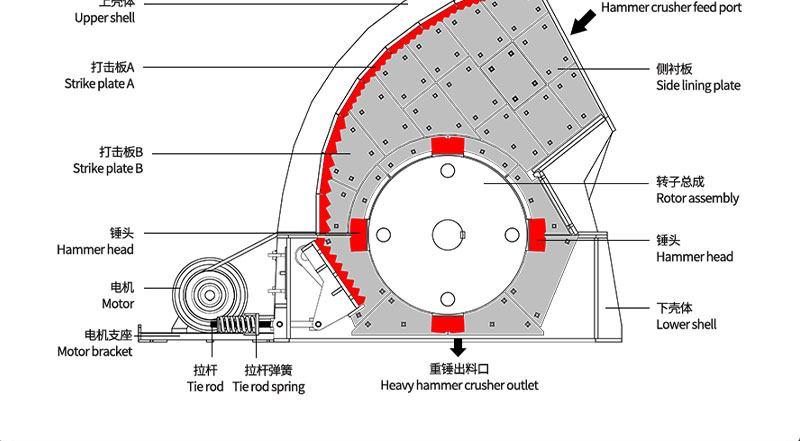

Working Principle

Driven by a motor, the rotor rotates at high speed. The hammers repeatedly strike and impact the material entering the crushing chamber to achieve rapid crushing. Material that meets the required particle size is discharged through the outlet; material not meeting the size continues to be crushed. The output particle size can be controlled by adjusting the gap between the impact plate and the hammers.

Performance Features

  • Compact structure with stable and reliable operation

  • Feed size ≤600 mm, uniform finished product size

  • High crushing efficiency, one-time molding, large crushing ratio

  • Wear-resistant vulnerable parts, easy maintenance

  • 360° rotatable hammer design reduces breakage risk

  • Rotor disc made of 16Mn steel with embedded manganese steel protective sleeves to enhance wear resistance

Technical Parameters

Parameter Specification
Rotor Size φ2000×2400 mm
Feed Opening 2400×1400 mm
Feed Size ≤1200 mm
Processing Capacity 1200–2000 t/h
Motor Power 450×2 kW
Heavy-Duty Hammer Crusher

Application Advantages

Flagship model featuring an extra-large rotor and high power configuration, specially designed for very large stone plants and mining crushing operations with strong one-time crushing capacity.
