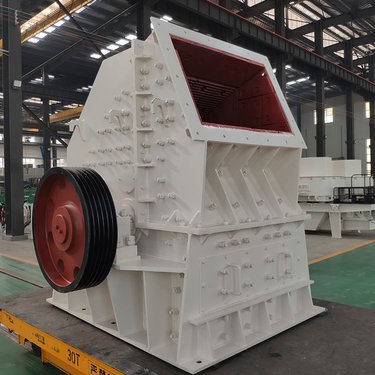

PCZ1820 Heavy-Duty Hammer Crusher

PCZ1820 Heavy-Duty Hammer Crusher

Working Principle

This crusher is driven by a motor that spins the rotor at high speed. The hammers repeatedly strike and impact the material entering the crushing chamber to achieve rapid crushing. Material reaching the required particle size is discharged through the outlet; material not meeting the size continues to be crushed. The output particle size can be controlled by adjusting the gap between the impact plate and the hammers.

Performance Features

• Compact structure, stable and reliable operation

• Feed size ≤600 mm, uniform finished product size

• High crushing efficiency, one-time molding, large crushing ratio

• Wear-resistant vulnerable parts, easy maintenance

• 360° rotatable hammer design to reduce breakage risk

• Rotor disc made of 16Mn steel with embedded manganese steel protective sleeves to enhance wear resistance

Technical Parameters

Parameter	Specification
Rotor Size	φ1800×2000 mm
Feed Opening	2000×1200 mm
Feed Size	≤1200 mm
Processing Capacity	800–1200 t/h
Motor Power	315×2 kW

Application Advantages

Enhanced processing capacity suitable for large-scale mining and aggregate production systems, meeting high output demands.
