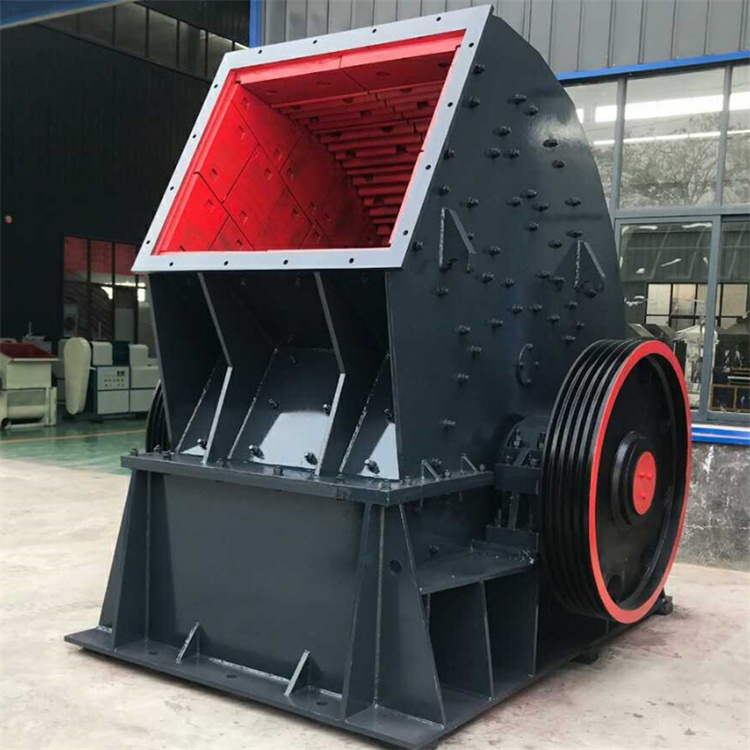

PCZ1818 Heavy-Duty Hammer Crusher

PCZ1818 Heavy-Duty Hammer Crusher

Working Principle

Driven by a motor, the rotor spins at high speed, and the hammers repeatedly strike and impact the material entering the crushing chamber, achieving rapid crushing. Material that reaches the required particle size is discharged from the outlet; otherwise, it continues crushing. The output particle size can be controlled by adjusting the gap between the impact plate and hammers.

Technical Parameters

Parameter	Specification
Rotor Size	φ1800×1800 mm
Feed Opening	1800×1200 mm
Feed Size	≤1200 mm
Processing Capacity	600–800 t/h
Motor Power	250×2 kW

Application Advantages

Suitable for high-intensity operations, with long hammer service life. Compatible with large material crushing processes and offers stable operation.
