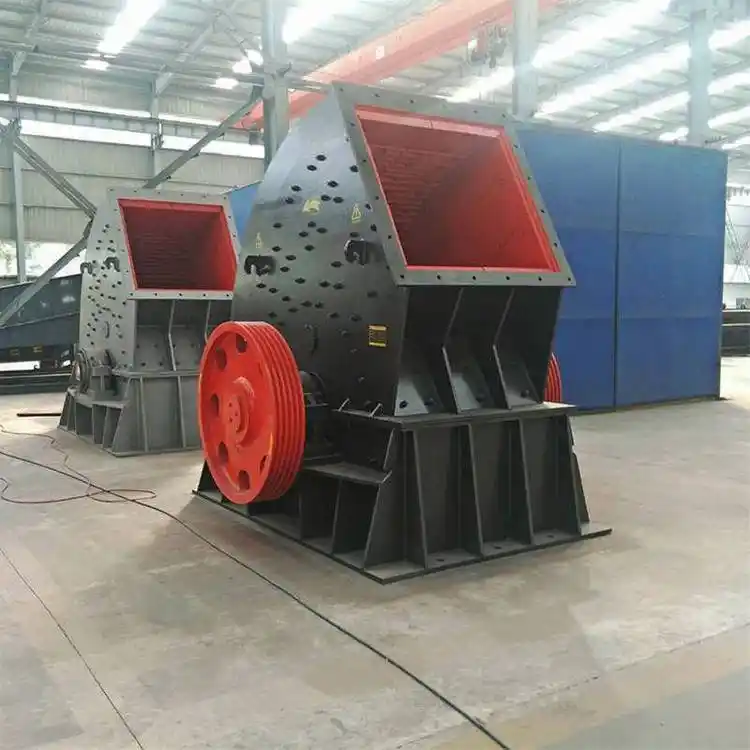

PCZ1512 Heavy-Duty Hammer Crusher
Working Principle
This crusher is driven by a motor that spins the rotor at high speed. The hammers repeatedly strike and impact the material entering the crushing chamber to achieve rapid crushing. Material that reaches the required particle size is discharged through the outlet, while material not meeting the size continues to be crushed. The output particle size can be controlled by adjusting the gap between the impact plate and the hammers.
Performance Features
-
Compact structure, stable and reliable operation
-
Feed size ≤600 mm, uniform finished product size
-
High crushing efficiency, one-time molding, large crushing ratio
-
Wear-resistant vulnerable parts, easy maintenance
-
360° rotatable hammer design reduces the risk of hammer breakage
-
Rotor disc made of 16Mn steel with embedded manganese steel protective sleeves for enhanced wear resistance
Technical Parameters
| Parameter | Specification |
|---|---|
| Rotor Size | φ1500×1200 mm |
| Feed Opening | 1200×1000 mm |
| Feed Size | ≤750 mm |
| Processing Capacity | 220–320 t/h |
| Motor Power | 160×2 kW |
Application Advantages
Capable of one-time crushing of medium to large stones, suitable for efficient pre-processing before sand making in stone plants.
