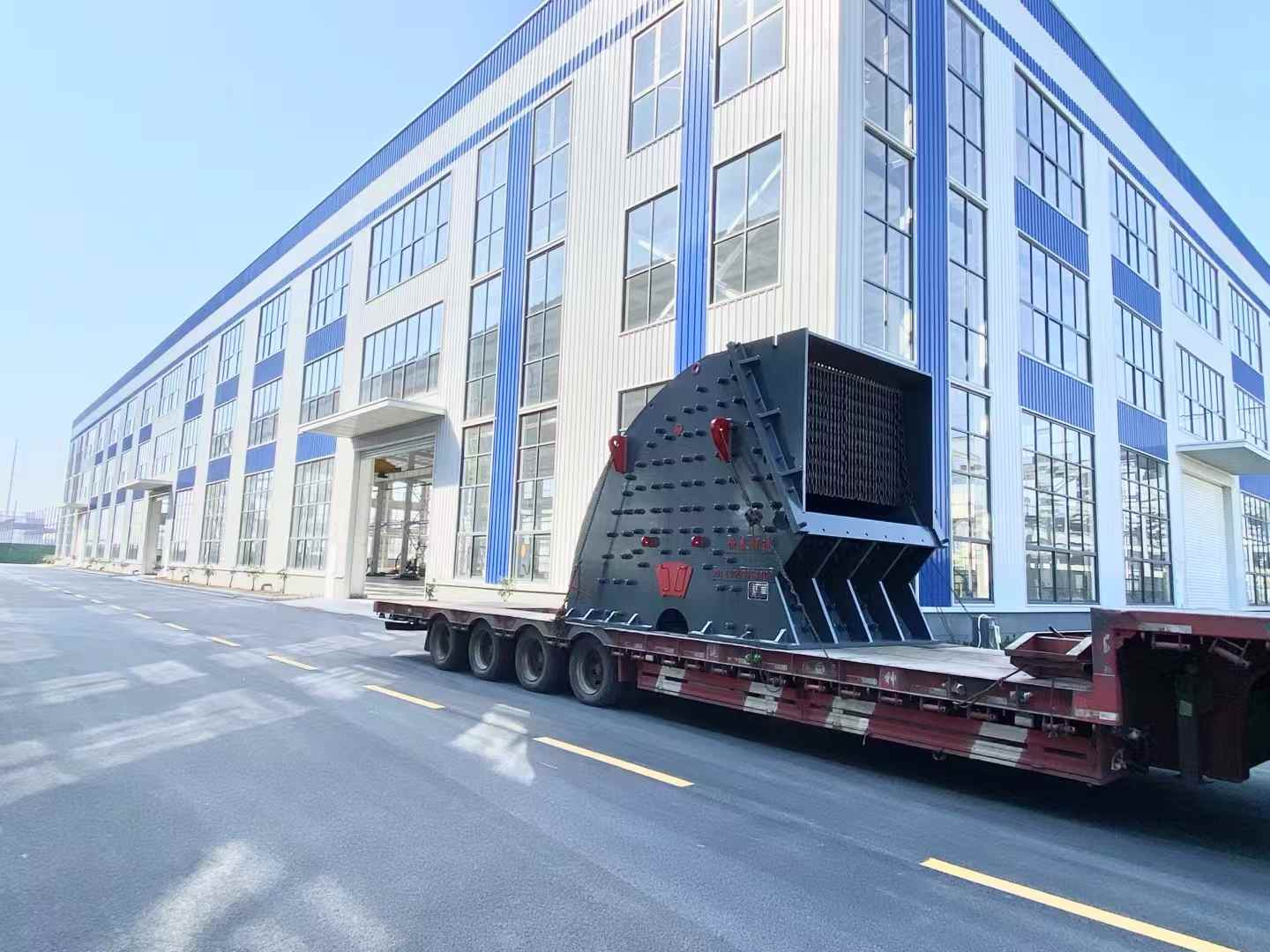

PCZ 2016 Heavy Hammer Crusher

📌 Model: PCZ Heavy Hammer Crusher 2016

• Max. Feeding Size: 950 mm

• Output Size Range: 0–100 mm

• Production Capacity: 400–500 t/h

• Motor Power: 315–355 kW

---

Heavy Hammer Crusher⚙️ Working Principle

The rotor disc, mounted with hammers, is driven by an electric motor to rotate at high speed. When the material enters the crushing chamber, it is hit by the fast-moving hammers and projected toward the impact plates. Further fragmentation occurs due to impact collisions and friction between particles. Material that meets the size requirements is discharged from the outlet, while oversized particles are returned for further crushing.

---

Heavy Hammer Crusher⭐ Performance Features

1. Simple structure with stable operation

2. Large feeding size and high crushing ratio with uniform product size

3. High efficiency with one-time crushing into final product

4. Wear-resistant components and easy maintenance

5. High single-machine output: 120–2000 t/h

6. Hammers can rotate 360° within the machine, reducing breakage risks

7. Enables single-pass crushing and shaping

---

Heavy Hammer Crusher 🧱 Material Suitability

This crusher is suitable for medium-hard and brittle materials, with compressive strength typically ≤150–200 MPa.

Heavy Hammer Crusher  ✅ Primary Suitable Stone Types

1. Limestone

   • Common compressive strength <150 MPa; ideal for PCZ crushers

2. Bluestone

   • Medium hardness, ≤200 MPa; efficient crushing

3. Coal Gangue

   • High brittleness and low abrasiveness; performs well

4. River Pebbles / Cobbles

   • Natural rounded stone; suitable if compressive strength ≤200 MPa

⚠️ Conditionally Suitable Materials (must meet strength criteria)

• Dolomite (≤200 MPa)

• Sandstone (medium hardness)

• Marble (≤200 MPa)

• Low-abrasion Basalt (strength must be verified)

---

❗ Key Limitations

• Compressive Strength Limit: Most models support up to 150–200 MPa

• Material Properties: Only for brittle, medium-hard, low-abrasiveness materials

• Not suitable (without verification): high-hardness materials like granite or iron ore

• Calcium Content: Some models require Ca content ≥40%

---

💡 Advantages

The PCZ Heavy Hammer Crusher enables one-step crushing and forming, making it ideal for projects with throughput requirements below 600 t/h. It eliminates secondary crushing stages, reducing system investment and operation costs by up to 40%. Its large feed size capacity (up to 1200 mm) makes it especially suitable for medium-scale applications in mining, building materials, and chemical industries.

Note: Actual equipment selection should match the stone’s physical properties, such as compressive strength and abrasion index.
