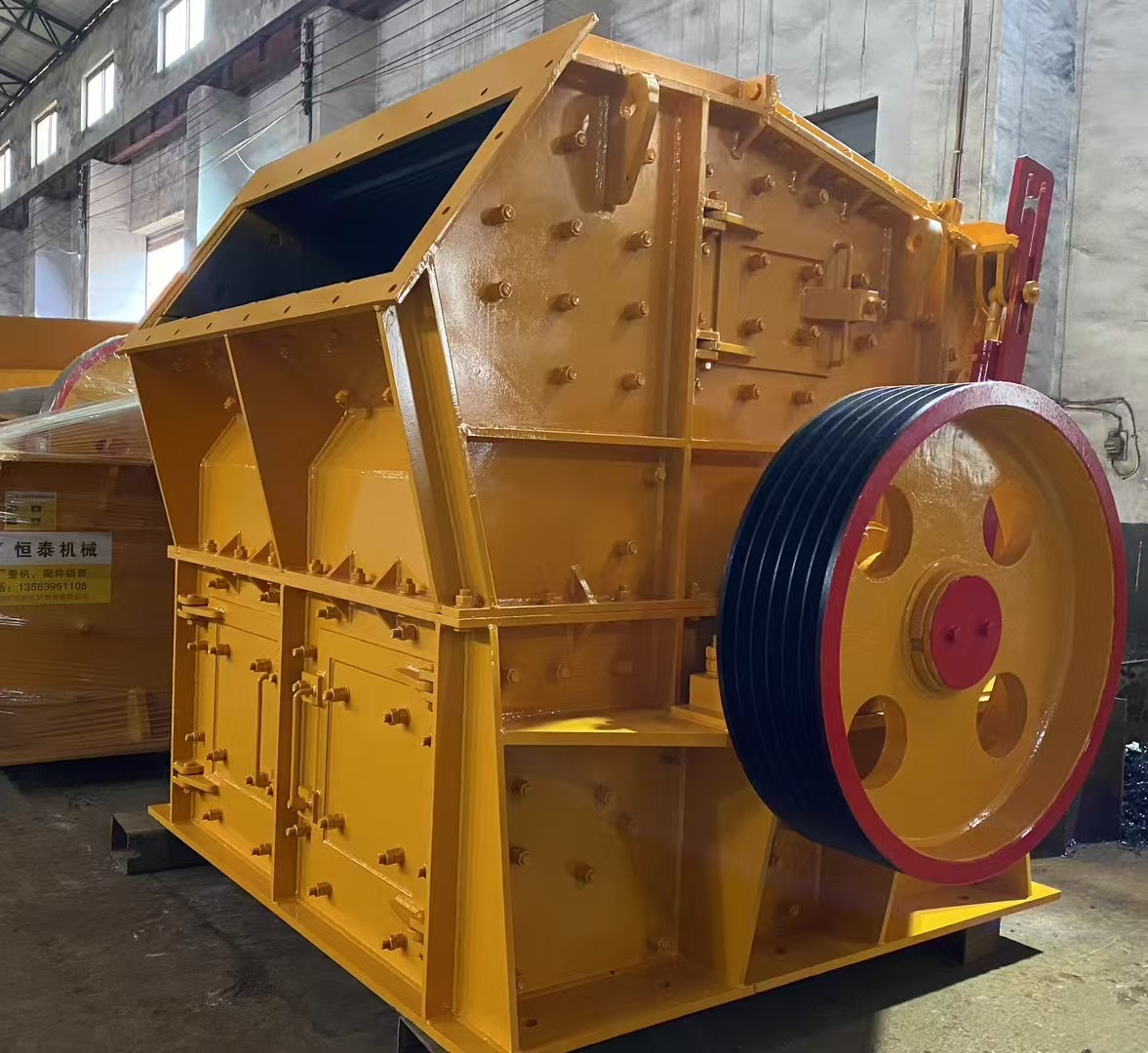

PCX1313 High-Efficiency Fine Crusher (Sand Making Machine)

PCX1313 High-Efficiency Fine Crusher (Sand Making Machine)

---

Key Specifications

• Feeding Size: 350 × 1300 mm

• Max Feeding Size: ≤150 mm

• Discharge Size: 0–15 mm (<5 mm: 70%)

• Capacity: 70–150 t/h

• Motor Power: 185 kW

---

Product Overview

The PCX Series High-Efficiency Fine Crusher is a next-generation fine crushing machine, designed with optimized structure and multi-cavity chambers for high crushing performance.
It delivers fine, uniform output with an easy-to-adjust dual-control system.

Ideal for:

• Highways & railways

• Cement industry

• Construction sand

• Water conservancy & hydropower

• Metallurgy

• Refractories

• Ceramics

• Chemical industries

---

Working Principle

Powered by the motor, the rotor plates rotate at high speed. Materials entering the chamber are crushed by the impact of the rotor plates and the rebound from impact plates.
Qualified materials pass through the outlet and sieve plate. Discharge size can be easily adjusted via the dual-adjustment system.

---

Key Features

• Hydraulic Chamber Opening: Easy maintenance

• Compact & Reliable: Stable operation

• Excellent Particle Shape: High output

• Energy Efficient: Low operational cost

---
