PCX1311 High-Efficiency Fine Crusher (Sand Making Machine)

PCX1311 High-Efficiency Fine Crusher (Sand Making Machine)

---

Key Specifications

• Feeding Size: 300 × 1300 mm

• Max Feeding Size: ≤120 mm

• Discharge Size: 0–15 mm (<5 mm: 70%)

• Capacity: 50–100 t/h

• Motor Power: 132 kW

---

Product Overview

The PCX Series High-Efficiency Fine Crusher is a new-generation fine crushing machine, designed with optimized structure and multi-cavity crushing chambers.
It ensures fine, uniform output and allows easy discharge adjustment with a dual-control system.

Widely used in:

• Highways & railways

• Cement plants

• Construction sand

• Water conservancy & hydropower

• Metallurgy

• Refractory materials

• Ceramics

• Chemical industries

---

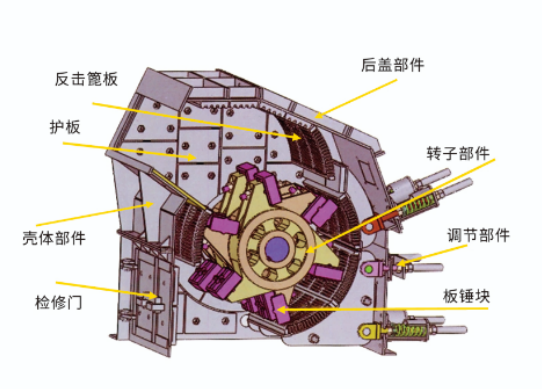

Working Principle

Driven by the motor, the rotor plates rotate at high speed. Materials are impacted by the rotor and rebound from the impact plates for repeated crushing.
Qualified materials discharge through the outlet and sieve plate. Discharge size can be adjusted via the dual-adjustment system.

---

Key Features

• Hydraulic Chamber Opening: Easy for maintenance

• Compact, Reliable Structure: Stable performance

• Excellent Particle Shape: High productivity

• Energy Saving: Low operational cost

---
