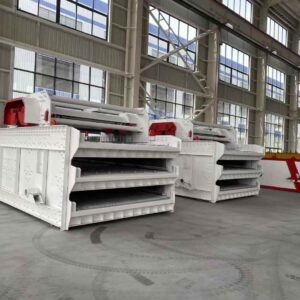

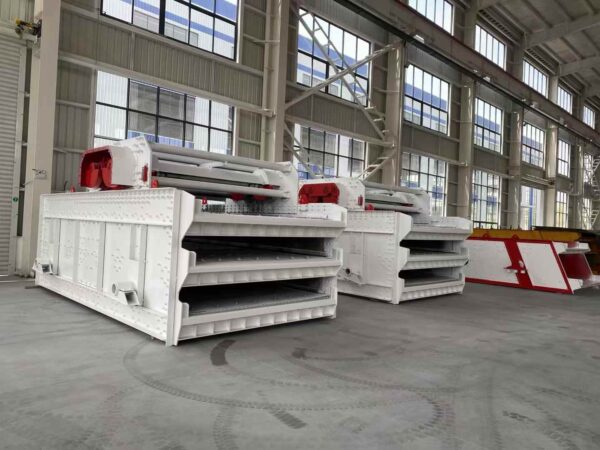

LF-D3060 Horizontal Vibrating Screen
Product Overview
The LF Series Horizontal Vibrating Screen is powered by dual motors, offering a compact design, smooth operation, high screening efficiency, large processing capacity, low noise, and easy maintenance. Its near-linear vibration trajectory makes it highly suitable for dry or wet screening of medium and fine materials.
Working Principle
The LF Series Horizontal Vibrating Screen primarily consists of a screen box, vibrator, supporting device, and transmission system. Two motors are installed on both sides of the screen body, adopting reverse self-synchronous driving to generate excitation force. This causes the screen box to move in a linear reciprocating motion, allowing materials to be thrown and move forward in a straight line on the screen surface, achieving efficient screening.
Key Features
-
Horizontal installation with near-linear vibration trajectory for high screening efficiency.
-
Strong excitation force for high throughput, especially effective for wet and sticky materials.
-
Simple and compact structure with a small footprint, easy installation, and maintenance.
-
Low energy consumption with stable performance and minimal noise.
-
Modular design for easy replacement of screen panels and simplified maintenance.
Technical Specifications
| Model | LF-D3060 |
|---|---|
| Screen Decks | 2 layers |
| Screen Size | 3000×6000 mm |
| Max Feeding Size | ≤150 mm |
| Capacity | 150-450 t/h |
| Vibration Frequency | 16.7 Hz |
| Motor Power | 2×22 kW |
| Weight | 12.5 t |
| Overall Dimensions | 7200×3300×2000 mm |
Applications
-
Medium and fine screening in sand and gravel aggregate production lines
-
Material classification in mining operations
-
Coal dewatering and desliming
-
Material separation in metallurgy
-
Particle grading in chemical industry
✅ Upgrade Your Screening Efficiency with LF-D3060 Horizontal Vibrating Screen!
Contact us now for customized solutions and competitive pricing.
