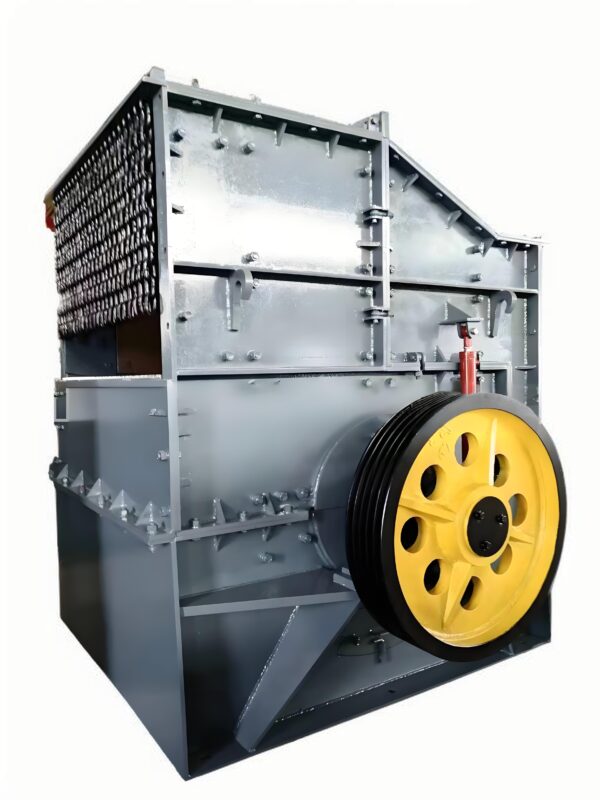

Hammer Crusher Product Overview:

As the flagship model in the GPC series, the GPC2218 is designed for ultra-heavy-duty crushing operations. Featuring dual 280 kW motors and an extra-large rotor, it efficiently processes extremely hard and bulky materials in ports, metallurgy, and major mining projects.

Hammer Crusher Technical Specifications:

Max Feeding Size: 1000 mm

Discharge Size: 0–100 mm

Capacity: 550–650 TPH

Motor Power: 280 × 2 kW

Applicable Materials: Quartzite, raw iron ore, blast furnace slag, high-silica materials, ROM ore
Recommended Applications: Port bulk crushing, metallurgy plants, large-scale mining systems

Hammer Crusher Working Principle

After entering the crushing chamber, the material is struck by the rapidly rotating hammers and thrown against the impact liners for further crushing. It then rebounds back into the hammer impact zone for repeated action until the material reaches the desired particle size and is discharged through the screen plates.
