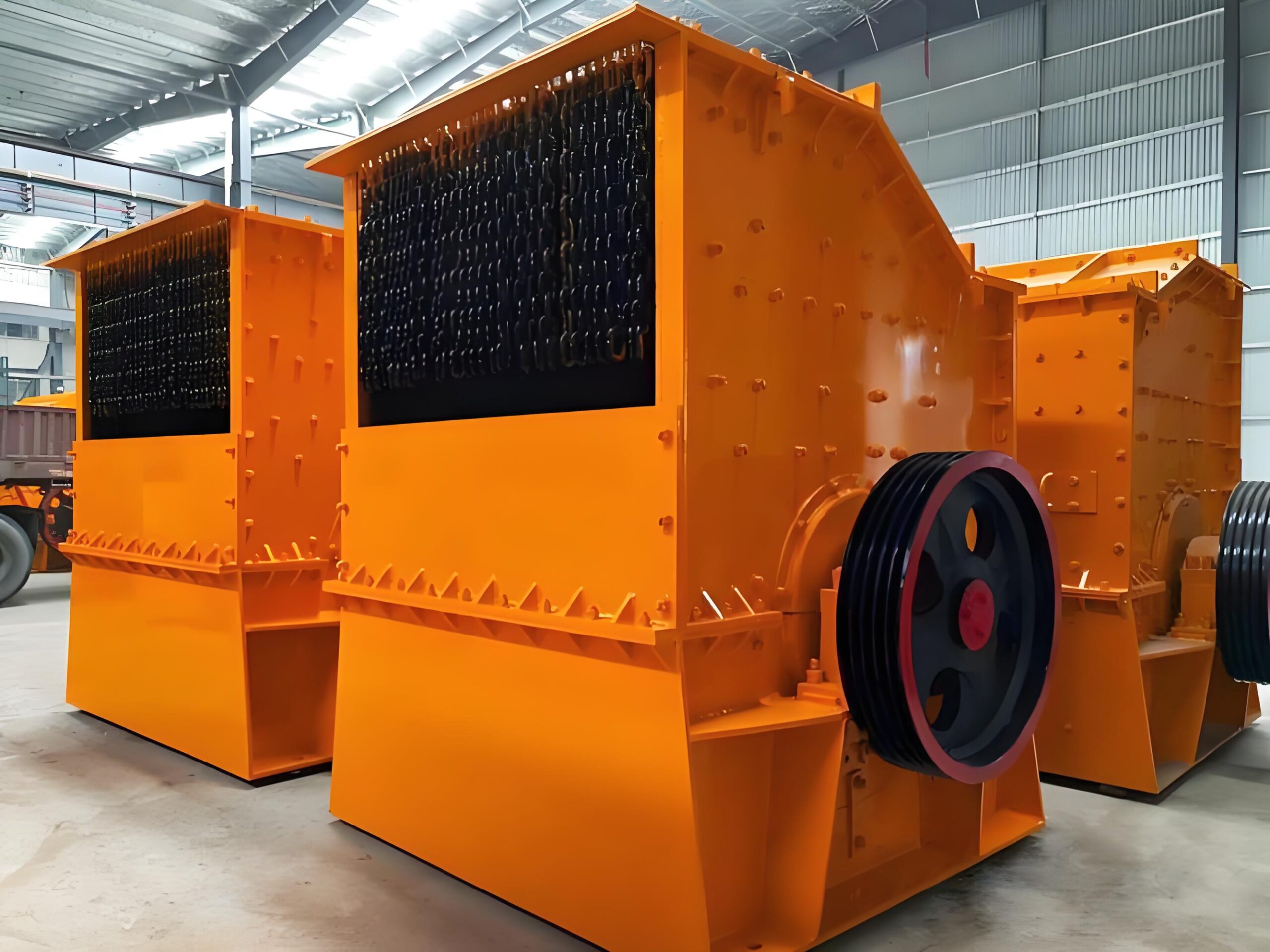

GPC1816 Hammer Crusher
Product Overview:
The GPC1816 is a high-capacity industrial hammer crusher designed for processing hard and large-sized materials. With a powerful motor and optimized structure, it is ideal for continuous operation in high-output environments such as major quarries and mineral production facilities.
Technical Specifications:
Max Feeding Size: 900 mm
Discharge Size: 0–100 mm
Capacity: 360–460 TPH
Motor Power: 280–315 kW
Applicable Materials: Diabase, andesite, iron ore, slag, bluestone
Recommended Applications: Large aggregate plants, heavy-duty crushing operations
Working Principle
After entering the crushing chamber, the material is struck by the rapidly rotating hammers and thrown against the impact liners for further crushing. It then rebounds back into the hammer impact zone for repeated action until the material reaches the desired particle size and is discharged through the screen plates.
