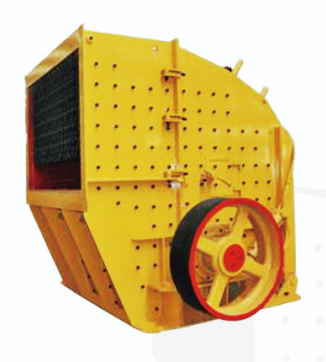

What Is the European Version Impact Crusher?
European Impact Crusher Core Advantages of PFW European Impact Crusher
1. Advanced Heavy-Duty Rotor Design
The PFW series features a heavy-duty rotor design that increases rotational inertia, improving crushing efficiency and equipment stability. As the “heart” of the crusher, the rotor is manufactured with high-strength materials and undergoes strict testing to ensure reliable and safe long-term operation.
2. High Wear-Resistant Blow Bars and Impact Plates
Equipped with high-chrome alloy blow bars and uniquely designed impact plates, the crusher greatly enhances wear resistance and service life, reducing maintenance frequency and operating costs.
3. Superior Cubic-Shaped Final Product
Optimized crushing chamber design enables the PFW crusher to produce cubic-shaped final aggregates with no tension or cracks, making it widely suitable for concrete production and construction materials processing, thereby increasing material value.
4. Flexible Discharge Size Adjustment
The discharge port supports multi-level adjustment, simplifying the crushing process and meeting precise particle size requirements for different projects, improving production efficiency.
5. Easy Maintenance and User-Friendly Operation
Innovative top-opening design and quick blow bar replacement system greatly reduce downtime during maintenance. The integral cast steel bearing housing and large-sized bearings ensure smooth operation and safe, simple handling.
European Impact Crusher Application Range and Technical Parameters
The PFW Series European Impact Crusher is suitable for crushing ores and rocks with compressive strength below 250 MPa. It is widely applied in hydroelectric power plants, highways, artificial sand and gravel production, and other fields.
| Model | Feed Opening Size (mm) | Max Feed Size (mm) | Capacity (t/h) | Motor Power (kW) | Dimensions (L×W×H) (mm) |
|---|---|---|---|---|---|
| PFW1210I | φ1150×960 | 1100×1030 | 400 | 90-160 | 2400×1870×2550 |
| PFW1214Ⅱ | φ1150×1400 | 1100×1430 | 500 | 130-200 | 2400×2310×2550 |
| PFW1315I | φ1300×1500 | 1200×1530 | 600 | 180-320 | 2700×2570×2800 |
| PFW1318I | φ1300×1800 | 1200×1830 | 700 | 240-400 | 2700×2870×2800 |
| Model | Specification | Feed Opening Size (mm) | Max Feed Size (mm) | Capacity (t/h) | Motor Power (kW) | Dimensions (L×W×H) (mm) |
|---|---|---|---|---|---|---|
| PFW1210Ⅲ | φ1150×960 | 570×990 | 250 | 70-120 | 90-110 | 2550×1870×2100 |
| PFW1214Ⅲ | φ1150×1400 | 570×1430 | 250 | 90-170 | 132-160 | 2550×2310×2100 |
| PFW1315Ⅲ | φ1300×1500 | 625×1530 | 300 | 180-270 | 160-200 | 2960×2570×2380 |
| PFW1318Ⅲ | φ1300×1800 | 625×1830 | 300 | 220-300 | 200-250 | 2960×2870×2380 |
| PFW1416Ⅲ | φ1400×1600 | 700×1650 | 350 | 250-350 | 250-320 | 3100×2800×2400 |
| PFW1518Ⅲ | φ1500×1800 | 750×1850 | 400 | 280-400 | 280-350 | 3200×2900×2450 |
| PFW1619Ⅲ | φ1600×1900 | 800×1950 | 450 | 320-450 | 300-400 | 3350×3050×2500 |
Why Choose PFW Series European Impact Crusher?
-
International Advanced Manufacturing Process: Manufactured using world-class technologies and premium materials, ensuring durable and long-lasting equipment.
-
High Efficiency and Energy Saving: Optimized structural and power system design significantly reduces energy consumption.
-
Safe Operation and Easy Maintenance: Intelligent design minimizes failure rates and maximizes continuous production.
-
Customized Customer Solutions: Multiple models available to meet diverse customer requirements, with technical consultation and after-sales support.
Conclusion
The PFW Series European Impact Crusher represents the highest standards in crushing machinery, ideal for customers seeking efficient, energy-saving, and stable production. For more product details or customized solutions, please contact our technical experts.
