PCX-Serie hocheffizienter feiner Brecher | Sand Making Machine for Highway, Railway & Konstruktion

PCX-Serie hocheffizienter feiner Brecher (Sandzubereitungsmaschine) — Precision Sand Production for Multiple Industries



Produktübersicht

The PCX-Serie hocheffizienter feiner Brecher, also known as a fine sand making machine, is an upgraded generation of crushing equipment designed for precise and uniform particle shaping.
With a multi-cavity crushing chamber and a dual-adjustment mechanism, it guarantees that the final output size meets strict requirements — fine, uniform, and consistent.

This machine is widely applied in:

• High-grade highways and high-speed railways

• Cement plants and ready-mix concrete production

• Construction-grade manufactured sand production

• Hydropower and water conservancy projects

• Metallurgy, refractory materials, ceramics, and chemical industries

---

Working Principle

The rotor discs are stagger-mounted on the main shaft and rotate at high speed under motor drive.
When material enters the crushing chamber, it is impacted by the high-speed rotating plates and crushed by the rebound plates. Qualified material is discharged through the outlet and rear screen plate holes, while oversized particles remain for further crushing.
The dual adjustment system allows operators to easily control discharge size for different applications, such as fine sand production or stone powder processing.

---

Key Features

1. Hydraulic cavity opening – Easy maintenance with minimal downtime.

2. Advanced design & compact structure – Stable operation for continuous production.

3. Excellent particle shape – Uniform, low flakiness content, ideal for high-quality concrete.

4. Energy-efficient – Lower power consumption for the same output compared to traditional crushers.

5. Versatile material compatibility – Handles hard granite, basalt, limestone, quartz, und mehr.

---

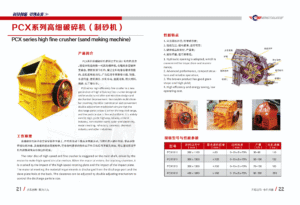

Technical Specifications

---

Why Choose the PCX Series Fine Crusher?

• Durable wear-resistant parts – Longer service life, reduced replacement costs.

• Eco-friendly production – Effective dust control and noise reduction.

• Customizable output size – Adjustable to suit multiple project requirements.

• Export-ready design – Meets international quality standards for global shipment.
